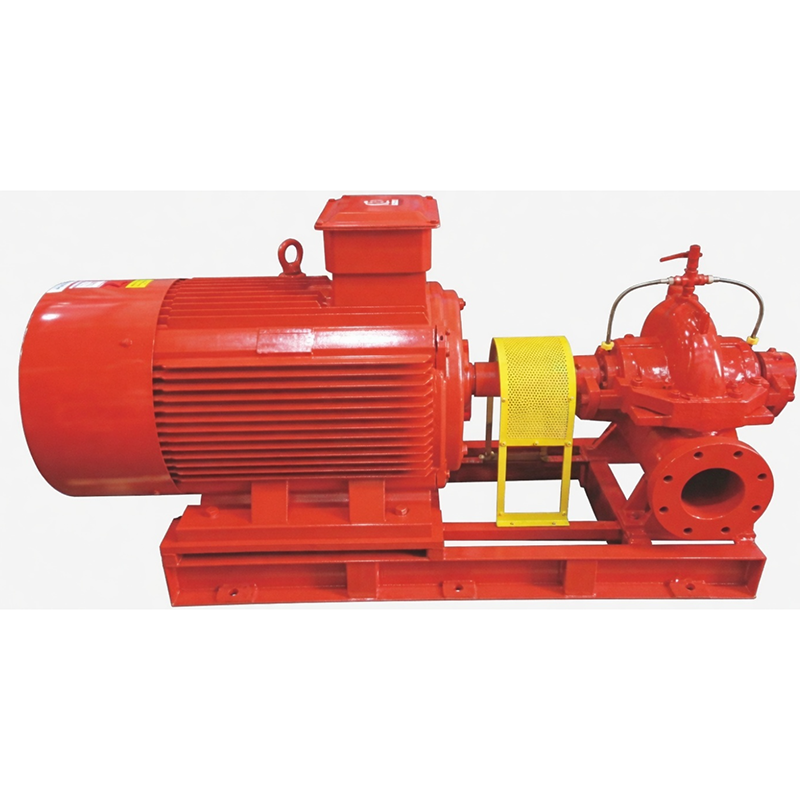

The XBD-CDS Horizontal Split-Case Double-Suction Fire Pump Set is a double-suction centrifugal fire pump featuring a straight-through flow passage, rib-reinforced casing, and optimized bearing span for enhanced shaft rigidity, integrated with mechanical seal and resin-sand precision casting process for stable high-flow medium-head fire water supply.
Resolves four critical operational challenges in conventional split-case fire pumps: excessive hydraulic losses reducing energy efficiency, insufficient shaft rigidity causing vibration and noise exceedance, mechanical seal leakage risks, and high NPSH requirements limiting installation flexibility.
Suitable for fire protection systems in high-rise buildings, industrial facilities, and municipal infrastructure requiring high-flow medium-head delivery, low vibration/noise operation, zero-leakage performance, and reliable start-up after prolonged standby.
Product Advantages
Extended Service Life: Standard SiC + alloy mechanical seals + QT450/304 stainless steel wetted parts resist cavitation & fatigue. Design lifespan ≥15 years—over 40% longer than standard cast-iron single-suction fire pumps.
Significant Energy Savings: CFD-optimized hydraulic model + resin-sand precision casting delivers smooth flow passages. Rated efficiency ≥82%, reducing annual energy consumption by 20%–30% vs. traditional solutions.
Lower Maintenance Costs: Horizontal split-case design + top lifting rings enable rotor/seal inspection without disconnecting inlet/outlet pipes. One technician completes core component replacement within 1.5 hours, cutting maintenance costs by 50%.
Lightweight & Compact Design: Double-suction symmetrical layout eliminates radial thrust. Optimized casing wall thickness & reinforcement ribs reduce overall weight by ~15% for equivalent flow/head, lowering foundation load & lifting complexity.
Faster Installation: Pre-aligned flanges + anchor bolt positioning holes enable direct pipeline connection after hoisting. Standard units reach commissioning readiness within 2.5 hours from unboxing, compressing installation cycle by 45%.
Building Fire Protection: Hydrant, automatic sprinkler, and water mist systems for high-rise/super high-rise buildings, commercial complexes, hotels, offices, and residential communities.
Industrial Fire Protection: Fire network water supply & process cooling backup for petrochemical, power plants, metallurgy/mining, pharmaceutical, and logistics warehouse facilities.
Municipal Facilities: Emergency fire water supply guarantee for critical public infrastructure: hospitals, schools, subway tunnels, airports/ports, and data centers.
Pipeline Boosting: Fire main network boosting/stabilization integration, or dual-source water supply systems paired with electric pumps to ensure stable, reliable water pressure.
Media Compatibility: Clean water or mildly corrosive liquids with similar properties. Standard media temperature ≤80℃/176℉. Free of highly abrasive solid particles.
Product Structure Diagram | No. | Material Name | Material Properties |
| 1 | Pump Casing | QT450 | |
| 2 | Casing Cover | QT450 | |
| 3 | Impeller | 304 | |
| 4 | Seal Flush Line | 304 | |
| 5 | Wear Ring | QT450 | |
| 6 | Mechanical Seal | Silicon Carbide + Alloy | |
| 7 | Pump Shaft | 2Cr+13 | |
| 8 | Bearing Housing | QT450 | |
| 9 | Bearing Cover | QT450 | |
| 10 | Water Slinger | Nitrile Butadiene Rubber | |
| 11 | Shaft Sleeve | Carbon Steel | |
| 12 | Mechanical Seal Gland | QT450 | |
| 13 | Bearing | Bearing Steel | |
| 14 | End Cover | QT450 | |
| 15 | O-Ring | Nitrile Butadiene Rubber |
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 1 | XBD11.0/60G-CDS | 60 | 110 | 132 | 1480 | 70 | 150 | 100 | 223 |
| 2 | XBD12.0/60G-CDS | 60 | 120 | 132 | 1480 | 70 | 150 | 100 | 223 |
| 3 | XBD13.0/60G-CDS | 60 | 130 | 132 | 1480 | 72 | 150 | 100 | 223 |
| 4 | XBD14.0/60G-CDS | 60 | 140 | 160 | 1480 | 66 | 150 | 100 | 241 |
| 5 | XBD15.0/60G-CDS | 60 | 150 | 160 | 1480 | 66 | 150 | 100 | 241 |
| 6 | XBD16.0/60G-CDS | 60 | 160 | 160 | 1480 | 66 | 150 | 100 | 241 |
| 7 | XBD17.0/60G-CDS | 60 | 170 | 200 | 1480 | 68 | 150 | 100 | 241 |
| 8 | XBD18.0/60G-CDS | 60 | 180 | 220 | 1480 | 68 | 150 | 100 | 241 |
| 9 | XBD19.0/60G-CDS | 60 | 190 | 220 | 1480 | 72 | 150 | 100 | 241 |
| 10 | XBD20.0/60G-CDS | 60 | 200 | 250 | 1480 | 72 | 150 | 100 | 241 |
| 11 | XBD9.0/70G-CDS | 70 | 90 | 110 | 1480 | 69 | 150 | 100 | 223 |
| 12 | XBD10.0/70G-CDS | 70 | 100 | 132 | 1480 | 70 | 150 | 100 | 223 |
| 13 | XBD11.0/70G-CDS | 70 | 110 | 160 | 2900 | 70 | 150 | 100 | 223 |
| 14 | XBD12.0/70G-CDS | 70 | 120 | 160 | 2900 | 70 | 150 | 100 | 223 |
| 15 | XBD13.0/70G-CDS | 70 | 130 | 160 | 2900 | 72 | 150 | 100 | 223 |
| 16 | XBD14.0/70G-CDS | 70 | 140 | 160 | 2900 | 73 | 150 | 100 | 241 |
| 17 | XBD15.0/70G-CDS | 70 | 150 | 200 | 2900 | 73 | 150 | 100 | 241 |
| 18 | XBD16.0/70G-CDS | 70 | 160 | 200 | 2900 | 73 | 150 | 100 | 241 |
| 19 | XBD17.0/70G-CDS | 70 | 170 | 220 | 2900 | 75 | 150 | 100 | 241 |
| 20 | XBD18.0/70G-CDS | 70 | 180 | 250 | 2900 | 75 | 150 | 100 | 241 |
| 21 | XBD19.0/70G-CDS | 70 | 190 | 250 | 2900 | 80 | 150 | 100 | 241 |
| 22 | XBD20.0/70G-CDS | 70 | 200 | 250 | 2900 | 80 | 150 | 100 | 241 |
| 23 | XBD3.0/80G-CDS | 80 | 30 | 55 | 1480 | 84 | 200 | 150 | 350 |
| 24 | XBD4.0/80G-CDS | 80 | 40 | 75 | 1480 | 79 | 200 | 150 | 370 |
| 25 | XBD5.0/80G-CDS | 80 | 50 | 75 | 1480 | 80 | 200 | 150 | 370 |
| 26 | XBD6.0/80G-CDS | 80 | 60 | 90 | 1480 | 78.5 | 200 | 150 | 500 |
| 27 | XBD7.0/80G-CDS | 80 | 70 | 90 | 1480 | 80 | 200 | 150 | 500 |
| 28 | XBD8.0/80G-CDS | 80 | 80 | 90 | 2900 | 69 | 150 | 100 | 223 |
| 29 | XBD9.0/80G-CDS | 80 | 90 | 110 | 2900 | 70 | 150 | 100 | 223 |
| 30 | XBD10.0/80G-CDS | 80 | 100 | 132 | 2900 | 70 | 150 | 100 | 223 |
| 31 | XBD11.0/80G-CDS | 80 | 110 | 160 | 2900 | 72 | 150 | 100 | 223 |
| 32 | XBD12.0/80G-CDS | 80 | 120 | 160 | 2900 | 72 | 150 | 100 | 223 |
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 33 | XBD13.0/80G-CDS | 80 | 130 | 160 | 2900 | 73 | 150 | 100 | 241 |
| 34 | XBD14.0/80G-CDS | 80 | 140 | 160 | 2900 | 73 | 150 | 100 | 241 |
| 35 | XBD15.0/80G-CDS | 80 | 150 | 200 | 2900 | 73 | 150 | 100 | 241 |
| 36 | XBD16.0/80G-CDS | 80 | 160 | 220 | 2900 | 75 | 150 | 100 | 241 |
| 37 | XBD17.0/80G-CDS | 80 | 170 | 220 | 2900 | 78 | 150 | 100 | 241 |
| 38 | XBD18.0/80G-CDS | 80 | 180 | 250 | 2900 | 78 | 150 | 100 | 241 |
| 39 | XBD19.0/80G-CDS | 80 | 190 | 250 | 2900 | 80 | 150 | 100 | 241 |
| 40 | XBD20.0/80G-CDS | 80 | 200 | 250 | 2900 | 80 | 150 | 100 | 241 |
| 41 | XBD3.0/90G-CDS | 90 | 30 | 55 | 1480 | 84 | 200 | 150 | 350 |
| 42 | XBD4.0/90G-CDS | 90 | 40 | 75 | 1480 | 79 | 200 | 150 | 370 |
| 43 | XBD5.0/90G-CDS | 90 | 50 | 75 | 1480 | 80 | 200 | 150 | 370 |
| 44 | XBD6.0/90G-CDS | 90 | 60 | 90 | 1480 | 78.5 | 200 | 150 | 500 |
| 45 | XBD7.0/90G-CDS | 90 | 70 | 90 | 1480 | 80 | 200 | 150 | 500 |
| 46 | XBD8.0/90G-CDS | 90 | 80 | 90 | 2900 | 69 | 150 | 100 | 223 |
| 47 | XBD9.0/90G-CDS | 90 | 90 | 110 | 2900 | 70 | 150 | 100 | 223 |
| 48 | XBD10.0/90G-CDS | 90 | 100 | 132 | 2900 | 70 | 150 | 100 | 223 |
| 49 | XBD11.0/90G-CDS | 90 | 110 | 200 | 2900 | 72 | 150 | 100 | 223 |
| 50 | XBD12.0/90G-CDS | 90 | 120 | 200 | 2900 | 72 | 150 | 100 | 223 |
| 51 | XBD13.0/90G-CDS | 90 | 130 | 200 | 2900 | 73 | 150 | 100 | 241 |
| 52 | XBD14.0/90G-CDS | 90 | 140 | 200 | 2900 | 73 | 150 | 100 | 241 |
| 53 | XBD15.0/90G-CDS | 90 | 150 | 200 | 2900 | 73 | 150 | 100 | 241 |
| 54 | XBD16.0/90G-CDS | 90 | 160 | 220 | 2900 | 75 | 150 | 100 | 241 |
| 55 | XBD17.0/90G-CDS | 90 | 170 | 250 | 2900 | 78 | 150 | 100 | 241 |
| 56 | XBD18.0/90G-CDS | 90 | 180 | 250 | 2900 | 78 | 150 | 100 | 241 |
| 57 | XBD3.0/100G-CDS | 100 | 30 | 55 | 1450 | 80 | 200 | 150 | 370 |
| 58 | XBD4.0/100G-CDS | 100 | 40 | 75 | 1450 | 80 | 200 | 150 | 370 |
| 59 | XBD5.0/100G-CDS | 100 | 50 | 90 | 2900 | 84 | 200 | 150 | 310 |
| 60 | XBD6.0/100G-CDS | 100 | 60 | 90 | 2900 | 84 | 200 | 150 | 310 |
| 61 | XBD7.0/100G-CDS | 100 | 70 | 110 | 2900 | 80 | 200 | 150 | 350 |
| 62 | XBD8.0/100G-CDS | 100 | 80 | 132 | 2900 | 82 | 200 | 150 | 350 |
| 63 | XBD9.0/100G-CDS | 100 | 90 | 132 | 2900 | 82 | 200 | 150 | 350 |
| 64 | XBD10.0/100G-CDS | 100 | 100 | 200 | 2900 | 78 | 150 | 100 | 223 |
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 65 | XBD11.0/100G-CDS | 100 | 110 | 200 | 2900 | 78 | 150 | 100 | 223 |
| 66 | XBD12.0/100G-CDS | 100 | 120 | 200 | 2900 | 80 | 150 | 100 | 223 |
| 67 | XBD13.0/100G-CDS | 100 | 130 | 400 | 2900 | 80 | 150 | 100 | 223 |
| 68 | XBD14.0/100G-CDS | 100 | 140 | 400 | 2900 | 75 | 150 | 100 | 241 |
| 69 | XBD15.0/100G-CDS | 100 | 150 | 450 | 2900 | 78 | 150 | 100 | 241 |
| 70 | XBD16.0/100G-CDS | 100 | 160 | 500 | 2900 | 78 | 150 | 100 | 241 |
| 71 | XBD17.0/100G-CDS | 100 | 170 | 560 | 2900 | 78 | 150 | 100 | 241 |
| 72 | XBD18.0/100G-CDS | 100 | 180 | 560 | 2900 | 78 | 150 | 100 | 241 |
| 73 | XBD19.0/100G-CDS | 100 | 190 | 630 | 2900 | 80 | 150 | 100 | 241 |
| 74 | XBD20.0/100G-CDS | 100 | 200 | 630 | 2900 | 80 | 150 | 100 | 241 |
| 75 | XBD3.0/110G-CDS | 110 | 30 | 55 | 1450 | 80 | 200 | 150 | 370 |
| 76 | XBD4.0/110G-CDS | 110 | 40 | 75 | 1450 | 80 | 200 | 150 | 370 |
| 77 | XBD5.0/110G-CDS | 110 | 50 | 90 | 2900 | 84 | 200 | 150 | 310 |
| 78 | XBD6.0/110G-CDS | 110 | 60 | 110 | 2900 | 84 | 200 | 150 | 310 |
| 79 | XBD7.0/110G-CDS | 110 | 70 | 110 | 2900 | 80 | 200 | 150 | 350 |
| 80 | XBD8.0/110G-CDS | 110 | 80 | 160 | 2900 | 82 | 200 | 150 | 350 |
| 81 | XBD9.0/110G-CDS | 110 | 90 | 160 | 2900 | 82 | 200 | 150 | 350 |
| 82 | XBD10.0/110G-CDS | 110 | 100 | 200 | 2900 | 78 | 150 | 100 | 223 |
| 83 | XBD11.0/110G-CDS | 110 | 110 | 355 | 2900 | 78 | 150 | 100 | 223 |
| 84 | XBD12.0/110G-CDS | 110 | 120 | 355 | 2900 | 80 | 150 | 100 | 223 |
| 85 | XBD13.0/110G-CDS | 110 | 130 | 400 | 2900 | 80 | 150 | 100 | 223 |
| 86 | XBD14.0/110G-CDS | 110 | 140 | 450 | 2900 | 75 | 150 | 100 | 241 |
| 87 | XBD15.0/110G-CDS | 110 | 150 | 500 | 2900 | 78 | 150 | 100 | 241 |
| 88 | XBD16.0/110G-CDS | 110 | 160 | 500 | 2900 | 78 | 150 | 100 | 241 |
| 89 | XBD17.0/110G-CDS | 110 | 170 | 560 | 2900 | 78 | 150 | 100 | 241 |
| 90 | XBD18.0/110G-CDS | 110 | 180 | 630 | 2900 | 78 | 150 | 100 | 241 |
| 91 | XBD19.0/110G-CDS | 110 | 190 | 630 | 2900 | 80 | 150 | 100 | 241 |
| 92 | XBD20.0/110G-CDS | 110 | 200 | 710 | 2900 | 80 | 150 | 100 | 241 |
| 93 | XBD3.0/120G-CDS | 120 | 30 | 75 | 1450 | 81 | 200 | 150 | 410 |
| 94 | XBD4.0/120G-CDS | 120 | 40 | 90 | 1450 | 76 | 200 | 150 | 520 |
| 95 | XBD5.0/120G-CDS | 120 | 50 | 110 | 1450 | 78 | 200 | 150 | 520 |
| 96 | XBD6.0/120G-CDS | 120 | 60 | 132 | 1450 | 81.5 | 200 | 150 | 520 |
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 97 | XBD7.0/120G-CDS | 120 | 70 | 160 | 1450 | 76.5 | 200 | 150 | 740 |
| 98 | XBD8.0/120G-CDS | 120 | 80 | 160 | 1450 | 78 | 200 | 150 | 740 |
| 99 | XBD9.0/120G-CDS | 120 | 90 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 100 | XBD10.0/120G-CDS | 120 | 100 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 101 | XBD11.0/120G-CDS | 120 | 110 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 102 | XBD12.0/120G-CDS | 120 | 120 | 400 | 1450 | 80 | 200 | 150 | 820 |
| 103 | XBD13.0/120G-CDS | 120 | 130 | 450 | 1450 | 82 | 200 | 150 | 820 |
| 104 | XBD14.0/120G-CDS | 120 | 140 | 450 | 1450 | 82 | 200 | 150 | 820 |
| 105 | XBD15.0/120G-CDS | 120 | 150 | 500 | 1450 | 82 | 200 | 150 | 820 |
| 106 | XBD16.0/120G-CDS | 120 | 160 | 560 | 1450 | 82 | 200 | 150 | 820 |
| 107 | XBD17.0/120G-CDS | 120 | 170 | 560 | 1450 | 82 | 200 | 150 | 820 |
| 108 | XBD18.0/120G-CDS | 120 | 180 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 109 | XBD19.0/120G-CDS | 120 | 190 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 110 | XBD20.0/120G-CDS | 120 | 200 | 710 | 1450 | 82 | 200 | 150 | 820 |
| 111 | XBD3.0/130G-CDS | 130 | 30 | 90 | 1450 | 81 | 200 | 150 | 410 |
| 112 | XBD4.0/130G-CDS | 130 | 40 | 110 | 1450 | 76 | 200 | 150 | 520 |
| 113 | XBD5.0/130G-CDS | 130 | 50 | 110 | 1450 | 78 | 200 | 150 | 520 |
| 114 | XBD6.0/130G-CDS | 130 | 60 | 132 | 1450 | 81.5 | 200 | 150 | 520 |
| 115 | XBD7.0/130G-CDS | 130 | 70 | 160 | 1450 | 76.5 | 200 | 150 | 740 |
| 116 | XBD8.0/130G-CDS | 130 | 80 | 160 | 1450 | 78 | 200 | 150 | 740 |
| 117 | XBD9.0/130G-CDS | 130 | 90 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 118 | XBD10.0/130G-CDS | 130 | 100 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 119 | XBD11.0/130G-CDS | 130 | 110 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 120 | XBD12.0/130G-CDS | 130 | 120 | 355 | 1450 | 80 | 200 | 150 | 820 |
| 121 | XBD13.0/130G-CDS | 130 | 130 | 355 | 1450 | 82 | 200 | 150 | 820 |
| 122 | XBD14.0/130G-CDS | 130 | 140 | 400 | 1450 | 82 | 200 | 150 | 820 |
| 123 | XBD15.0/130G-CDS | 130 | 150 | 450 | 1450 | 82 | 200 | 150 | 820 |
| 124 | XBD16.0/130G-CDS | 130 | 160 | 560 | 1450 | 82 | 200 | 150 | 820 |
| 125 | XBD17.0/130G-CDS | 130 | 170 | 560 | 1450 | 82 | 200 | 150 | 820 |
| 126 | XBD18.0/130G-CDS | 130 | 180 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 127 | XBD19.0/130G-CDS | 130 | 190 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 128 | XBD20.0/130G-CDS | 130 | 200 | 710 | 1450 | 82 | 200 | 150 | 820 |
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 129 | XBD3.0/140G-CDS | 140 | 30 | 90 | 1450 | 81 | 200 | 150 | 410 |
| 130 | XBD4.0/140G-CDS | 140 | 40 | 110 | 1450 | 76 | 200 | 150 | 520 |
| 131 | XBD5.0/140G-CDS | 140 | 50 | 132 | 1450 | 78 | 200 | 150 | 520 |
| 132 | XBD6.0/140G-CDS | 140 | 60 | 160 | 1450 | 81.5 | 200 | 150 | 520 |
| 133 | XBD7.0/140G-CDS | 140 | 70 | 160 | 1450 | 76.5 | 200 | 150 | 740 |
| 134 | XBD8.0/140G-CDS | 140 | 80 | 200 | 1450 | 78 | 200 | 150 | 740 |
| 135 | XBD9.0/140G-CDS | 140 | 90 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 136 | XBD10.0/140G-CDS | 140 | 100 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 137 | XBD11.0/140G-CDS | 140 | 110 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 138 | XBD12.0/140G-CDS | 140 | 120 | 355 | 1450 | 80 | 200 | 150 | 820 |
| 139 | XBD13.0/140G-CDS | 140 | 130 | 355 | 1450 | 82 | 200 | 150 | 820 |
| 140 | XBD14.0/140G-CDS | 140 | 140 | 450 | 1450 | 82 | 200 | 150 | 820 |
| 141 | XBD15.0/140G-CDS | 140 | 150 | 450 | 1450 | 82 | 200 | 150 | 820 |
| 142 | XBD16.0/140G-CDS | 140 | 160 | 560 | 1450 | 82 | 200 | 150 | 820 |
| 143 | XBD17.0/140G-CDS | 140 | 170 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 144 | XBD18.0/140G-CDS | 140 | 180 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 145 | XBD19.0/140G-CDS | 140 | 190 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 146 | XBD20.0/140G-CDS | 140 | 200 | 710 | 1450 | 82 | 200 | 150 | 820 |
| 147 | XBD3.0/150G-CDS | 150 | 30 | 90 | 1450 | 83.5 | 200 | 150 | 410 |
| 148 | XBD4.0/150G-CDS | 150 | 40 | 110 | 1450 | 78 | 200 | 150 | 520 |
| 149 | XBD5.0/150G-CDS | 150 | 50 | 132 | 1450 | 78 | 200 | 150 | 520 |
| 150 | XBD6.0/150G-CDS | 150 | 60 | 160 | 1450 | 81.5 | 200 | 150 | 520 |
| 151 | XBD7.0/150G-CDS | 150 | 70 | 200 | 1450 | 78 | 200 | 150 | 740 |
| 152 | XBD8.0/150G-CDS | 150 | 80 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 153 | XBD9.0/150G-CDS | 150 | 90 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 154 | XBD10.0/150G-CDS | 150 | 100 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 155 | XBD11.0/150G-CDS | 150 | 110 | 315 | 1450 | 80 | 200 | 150 | 740 |
| 156 | XBD12.0/150G-CDS | 150 | 120 | 355 | 1450 | 82 | 200 | 150 | 820 |
| 157 | XBD13.0/150G-CDS | 150 | 130 | 355 | 1450 | 82 | 200 | 150 | 820 |
| 158 | XBD14.0/150G-CDS | 150 | 140 | 450 | 1450 | 82 | 200 | 150 | 820 |
| 159 | XBD15.0/150G-CDS | 150 | 150 | 450 | 1450 | 82 | 200 | 150 | 820 |
| 160 | XBD16.0/150G-CDS | 150 | 160 | 560 | 1450 | 82 | 200 | 150 | 820 |
Performance Data Table 6
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 161 | XBD17.0/150G-CDS | 150 | 170 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 162 | XBD18.0/150G-CDS | 150 | 180 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 163 | XBD19.0/150G-CDS | 150 | 190 | 710 | 1450 | 82 | 200 | 150 | 820 |
| 164 | XBD20.0/150G-CDS | 150 | 200 | 710 | 1450 | 82 | 200 | 150 | 820 |
| 165 | XBD3.0/160G-CDS | 160 | 30 | 90 | 1450 | 83.5 | 200 | 150 | 410 |
| 166 | XBD4.0/160G-CDS | 160 | 40 | 110 | 1450 | 78 | 200 | 150 | 520 |
| 167 | XBD5.0/160G-CDS | 160 | 50 | 132 | 1450 | 78 | 200 | 150 | 520 |
| 168 | XBD6.0/160G-CDS | 160 | 60 | 160 | 1450 | 81.5 | 200 | 150 | 520 |
| 169 | XBD7.0/160G-CDS | 160 | 70 | 200 | 1450 | 78 | 200 | 150 | 740 |
| 170 | XBD8.0/160G-CDS | 160 | 80 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 171 | XBD9.0/160G-CDS | 160 | 90 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 172 | XBD10.0/160G-CDS | 160 | 100 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 173 | XBD11.0/160G-CDS | 160 | 110 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 174 | XBD12.0/160G-CDS | 160 | 120 | 355 | 1450 | 80 | 250 | 200 | 920 |
| 175 | XBD13.0/160G-CDS | 160 | 130 | 355 | 1450 | 80 | 250 | 200 | 920 |
| 176 | XBD14.0/160G-CDS | 160 | 140 | 450 | 1450 | 78.5 | 250 | 200 | 920 |
| 177 | XBD15.0/160G-CDS | 160 | 150 | 450 | 1450 | 80 | 250 | 200 | 920 |
| 178 | XBD16.0/160G-CDS | 160 | 160 | 560 | 1450 | 65 | 250 | 200 | 1450 |
| 179 | XBD17.0/160G-CDS | 160 | 170 | 560 | 1450 | 67 | 250 | 200 | 1450 |
| 180 | XBD18.0/160G-CDS | 160 | 180 | 560 | 1450 | 67 | 250 | 200 | 1450 |
| 181 | XBD19.0/160G-CDS | 160 | 190 | 630 | 1450 | 82 | 200 | 150 | 820 |
| 182 | XBD20.0/160G-CDS | 160 | 200 | 710 | 1450 | 82 | 200 | 150 | 820 |
| 183 | XBD3.0/170G-CDS | 170 | 30 | 110 | 1450 | 83.5 | 200 | 150 | 410 |
| 184 | XBD4.0/170G-CDS | 170 | 40 | 132 | 1450 | 78 | 200 | 150 | 520 |
| 185 | XBD5.0/170G-CDS | 170 | 50 | 132 | 1450 | 78 | 200 | 150 | 520 |
| 186 | XBD6.0/170G-CDS | 170 | 60 | 160 | 1450 | 81.5 | 200 | 150 | 520 |
| 187 | XBD7.0/170G-CDS | 170 | 70 | 160 | 1450 | 78 | 200 | 150 | 740 |
| 188 | XBD8.0/170G-CDS | 170 | 80 | 200 | 1450 | 80 | 200 | 150 | 740 |
| 189 | XBD9.0/170G-CDS | 170 | 90 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 190 | XBD10.0/170G-CDS | 170 | 100 | 250 | 1450 | 80 | 200 | 150 | 740 |
| 191 | XBD11.0/170G-CDS | 170 | 110 | 315 | 1450 | 80 | 200 | 150 | 740 |
| 192 | XBD12.0/170G-CDS | 170 | 120 | 355 | 1450 | 80 | 250 | 200 | 920 |
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 225 | XBD13.0/190G-CDS | 190 | 130 | 355 | 1450 | 80 | 250 | 200 | 920 |
| 226 | XBD14.0/190G-CDS | 190 | 140 | 450 | 1450 | 78.5 | 250 | 200 | 920 |
| 227 | XBD15.0/190G-CDS | 190 | 150 | 560 | 1450 | 80 | 250 | 200 | 920 |
| 228 | XBD16.0/190G-CDS | 190 | 160 | 560 | 1450 | 65 | 250 | 200 | 1450 |
| 229 | XBD17.0/190G-CDS | 190 | 170 | 560 | 1450 | 67 | 250 | 200 | 1450 |
| 230 | XBD18.0/190G-CDS | 190 | 180 | 630 | 1450 | 67 | 250 | 200 | 1450 |
| 231 | XBD19.0/190G-CDS | 190 | 190 | 630 | 1450 | 69 | 250 | 200 | 1450 |
| 232 | XBD20.0/190G-CDS | 190 | 200 | 710 | 1450 | 69 | 250 | 200 | 1450 |
| 233 | XBD3.0/200G-CDS | 200 | 30 | 110 | 1450 | 86 | 250 | 200 | 590 |
| 234 | XBD4.0/200G-CDS | 200 | 40 | 132 | 1450 | 83 | 250 | 200 | 620 |
| 235 | XBD5.0/200G-CDS | 200 | 50 | 160 | 1450 | 85 | 250 | 200 | 620 |
| 236 | XBD6.0/200G-CDS | 200 | 60 | 200 | 1450 | 80 | 250 | 200 | 840 |
| 237 | XBD7.0/200G-CDS | 200 | 70 | 250 | 1450 | 81 | 250 | 200 | 840 |
| 238 | XBD8.0/200G-CDS | 200 | 80 | 250 | 1450 | 82 | 250 | 200 | 840 |
| 239 | XBD9.0/200G-CDS | 200 | 90 | 315 | 1450 | 82 | 250 | 200 | 840 |
| 240 | XBD10.0/200G-CDS | 200 | 100 | 315 | 1450 | 76 | 250 | 200 | 920 |
| 241 | XBD11.0/200G-CDS | 200 | 110 | 355 | 1450 | 78.5 | 250 | 200 | 920 |
| 242 | XBD12.0/200G-CDS | 200 | 120 | 355 | 1450 | 80 | 250 | 200 | 920 |
| 243 | XBD13.0/200G-CDS | 200 | 130 | 355 | 1450 | 80 | 250 | 200 | 920 |
| 244 | XBD14.0/200G-CDS | 200 | 140 | 450 | 1450 | 78.5 | 250 | 200 | 920 |
| 245 | XBD15.0/200G-CDS | 200 | 150 | 450 | 1450 | 80 | 250 | 200 | 920 |
| 246 | XBD16.0/200G-CDS | 200 | 160 | 560 | 1450 | 65 | 250 | 200 | 1450 |
| 247 | XBD17.0/200G-CDS | 200 | 170 | 630 | 1450 | 67 | 250 | 200 | 1450 |
| 248 | XBD18.0/200G-CDS | 200 | 180 | 630 | 1450 | 67 | 250 | 200 | 1450 |
| 249 | XBD3.0/210G-CDS | 210 | 30 | 110 | 1450 | 86 | 250 | 200 | 590 |
| 250 | XBD4.0/210G-CDS | 210 | 40 | 132 | 1450 | 83 | 250 | 200 | 620 |
| 251 | XBD5.0/210G-CDS | 210 | 50 | 160 | 1450 | 85 | 250 | 200 | 620 |
| 252 | XBD6.0/210G-CDS | 210 | 60 | 200 | 1450 | 80 | 250 | 200 | 840 |
| 253 | XBD7.0/210G-CDS | 210 | 70 | 250 | 1450 | 81 | 250 | 200 | 840 |
| 254 | XBD8.0/210G-CDS | 210 | 80 | 250 | 1450 | 82 | 250 | 200 | 840 |
| 255 | XBD9.0/210G-CDS | 210 | 90 | 315 | 1450 | 82 | 250 | 200 | 840 |
| 256 | XBD10.0/210G-CDS | 210 | 100 | 315 | 1450 | 76 | 250 | 200 | 920 |
| NO. | Specifications | Flow (L/s) | Head (m) | Power (kw) | Speed (r/min) | Efficiency | Inlet Size | Outlet Size | Pump Weight |
| 289 | XBD9.0/230G-CDS | 230 | 90 | 315 | 1450 | 82 | 250 | 200 | 840 |
| 290 | XBD10.0/230G-CDS | 230 | 100 | 315 | 1450 | 76 | 250 | 200 | 920 |
| 291 | XBD11.0/230G-CDS | 230 | 110 | 355 | 1450 | 78.5 | 250 | 200 | 920 |
| 292 | XBD12.0/230G-CDS | 230 | 120 | 355 | 1450 | 80 | 250 | 200 | 920 |
| 293 | XBD13.0/230G-CDS | 230 | 130 | 450 | 1450 | 80 | 250 | 200 | 920 |
| 294 | XBD14.0/230G-CDS | 230 | 140 | 450 | 1450 | 78.5 | 250 | 200 | 920 |
| 295 | XBD15.0/230G-CDS | 230 | 150 | 560 | 1450 | 80 | 250 | 200 | 920 |
| 296 | XBD16.0/230G-CDS | 230 | 160 | 630 | 1450 | 65 | 250 | 200 | 1450 |
| 297 | XBD17.0/230G-CDS | 230 | 170 | 630 | 1450 | 67 | 250 | 200 | 1450 |
| 298 | XBD18.0/230G-CDS | 230 | 180 | 630 | 1450 | 67 | 250 | 200 | 1450 |
| 299 | XBD19.0/230G-CDS | 230 | 190 | 710 | 1450 | 69 | 250 | 200 | 1450 |
| 300 | XBD20.0/230G-CDS | 230 | 200 | 800 | 1450 | 69 | 250 | 200 | 1450 |
| 301 | XBD4.0/250G-CDS | 250 | 40 | 160 | 1450 | 80.5 | 300 | 250 | 930 |
| 302 | XBD7.0/250G-CDS | 250 | 70 | 250 | 1450 | 81.5 | 300 | 250 | 1215 |
| 303 | XBD3.0/260G-CDS | 260 | 30 | 110 | 1450 | 86 | 300 | 250 | 810 |
| 304 | XBD3.0/270G-CDS | 270 | 30 | 132 | 1450 | 86 | 300 | 250 | 810 |
| 305 | XBD7.0/270G-CDS | 270 | 70 | 250 | 1450 | 82 | 300 | 250 | 1215 |
| 306 | XBD9.0/270G-CDS | 270 | 90 | 315 | 1450 | 82.5 | 300 | 250 | 1215 |
| 307 | XBD5.0/280G-CDS | 280 | 50 | 200 | 1450 | 82.5 | 300 | 250 | 930 |
| 308 | XBD7.0/280G-CDS | 280 | 70 | 280 | 1450 | 79 | 350 | 250 | 990 |
| 309 | XBD4.0/290G-CDS | 290 | 40 | 160 | 1450 | 88 | 300 | 250 | 810 |
| 310 | XBD7.0/290G-CDS | 290 | 70 | 315 | 1450 | 81 | 350 | 250 | 990 |
| 311 | XBD8.0/290G-CDS | 290 | 80 | 315 | 1450 | 83 | 300 | 250 | 1215 |
| 312 | XBD11.0/290G-CDS | 290 | 110 | 400 | 1450 | 83 | 300 | 250 | 1215 |
| 313 | XBD12.0/290G-CDS | 290 | 120 | 560 | 1450 | 84 | 300 | 250 | 1215 |
| 314 | XBD5.0/300G-CDS | 300 | 50 | 220 | 1450 | 84 | 300 | 250 | 930 |
| 315 | XBD8.0/300G-CDS | 300 | 80 | 355 | 1450 | 83 | 350 | 250 | 990 |
| 316 | XBD15.0/300G-CDS | 300 | 150 | 800 | 1450 | 77 | 350 | 250 | 1950 |
| 317 | XBD9.0/320G-CDS | 320 | 90 | 400 | 1450 | 85 | 350 | 250 | 990 |
| 318 | XBD10.0/320G-CDS | 320 | 100 | 450 | 1450 | 83.5 | 300 | 250 | 1215 |
| 319 | XBD16.0/320G-CDS | 320 | 160 | 900 | 1450 | 78 | 350 | 250 | 1950 |
| 320 | XBD6.0/330G-CDS | 330 | 60 | 280 | 1450 | 87 | 300 | 250 | 930 |
| 321 | XBD18.0/330G-CDS | 330 | 180 | 1000 | 1450 | 78 | 350 | 250 | 1950 |
| 322 | XBD6.6/350G-CDS | 350 | 66 | 355 | 1450 | 84 | 350 | 250 | 1400 |
| 323 | XBD11.0/350G-CDS | 350 | 110 | 560 | 1450 | 84 | 300 | 250 | 1215 |
Mandatory Fire Certification: Strictly manufactured per GB 6245-2006. Passed type testing by National Fire Equipment Quality Supervision & Inspection Center. CCCF-certified models available upon request.
Performance Compliance Assurance: Flow-head curve, NPSHr, vibration/noise, & pressure strength 100% compliant. Bilingual third-party test reports available.
International Quality System: ISO 9001:2015 certified. Core pressure-bearing components evaluated per CE/PED 2014/68/EU, meeting EU/US market entry requirements.
Factory Inspection Standard: Every unit undergoes 1.5× rated pressure hydrostatic test (5-min hold) + G2.5 dynamic balance calibration + mechanical seal leakage test (≤3 drops/min), guaranteeing zero-leakage, zero-fault delivery.
Fast Standard Delivery: Covers flow 50–3000 m³/h, head 20–150 m. Standard QT450 ductile iron + SiC seals. Technical confirmation & sample prototyping within 72 hours.
Deep Customization Capabilities:
Material Upgrade: Wetted parts optional in 304/2Cr13 stainless steel or duplex steel for mildly corrosive, high-chloride, or high-reliability fire water.
Seals & Motors: Optional high-temp seals (up to 105℃), explosion-proof motors (Ex d IIB T4), IE4 ultra-efficiency or VFD-dedicated drives.
Structural Adaptation: Flange standard switching (GB/ANSI/DIN/JIS), reinforced base, pre-installed flexible joints, outdoor rain/soundproof canopies.
Intelligent Expansion: Pre-wired interfaces for pressure/flow/vibration sensors; supports integration with auto fire control cabinets, PLC primary/standby rotation modules, IoT cloud platforms.
Please contact us for customization inquiries. Our engineering team delivers process proposals within 48 hours.
Installation Key Points:
1.Mount unit horizontally on concrete foundation. Tighten anchor bolts symmetrically. Ensure shaft horizontal deviation ≤0.05 mm/m to prevent premature bearing wear from uneven loading.
2.Install flexible expansion joints at inlet/outlet. Provide independent pipe supports. Never transfer pipe weight or thermal stress to pump flanges.
3.Motor junction box faces outward. Route cable in conduit. Grounding resistance ≤4 Ω. Manually rotate shaft 3 turns to confirm smooth, friction-free rotor movement.
4.Open top vent valve to fill pump with media. Lock valve after confirming no air remains. Jog test to verify rotation (clockwise from drive end).
Commissioning Process: Prime & vent → Jog test for direction → No-load run 10 min → Slowly open discharge valve to rated duty → Record current/pressure/vibration/bearing temp data → Acceptance sign-off.
Request the “XBD-CDS Horizontal Split-Case Double Suction Fire Pump Set Installation & Maintenance Manual” (PDF/English version) for complete dimensional drawings, flange specs, and commissioning logs.
Q1: How does double-suction design significantly improve cavitation performance (lower NPSHr)?
Symmetrical inlet halves single-side flow, reducing inlet velocity by >50%. Combined with CFD-optimized impeller inlet angle, tested NPSHr drops 30% vs. single-suction pumps, greatly enhancing cavitation resistance.
Q2: How does horizontal split-case design enable “maintenance without disconnecting pipes”?
After loosening upper casing bolts, the top cover lifts directly off. The rotor assembly (impeller/shaft/bearings/seals) is fully exposed for maintenance without disturbing inlet/outlet connections.
Q3: How to choose between QT450 ductile iron and 304/2Cr13 stainless steel?
QT450 suits standard clean water fire systems (cost-effective, high strength). 304/2Cr13 suits municipal/industrial networks with trace chlorides, mild corrosion, or high-reliability demands.
Q4: Why does short bearing span ensure vibration ≤4.5 mm/s?
Shortened span reduces shaft deflection. Combined with G2.5 dynamic balance & heavy-duty self-aligning roller bearings, it suppresses critical speed resonance. Tested vibration ≤4.5 mm/s across all duties.
Q5: How to prevent water hammer & pressure fluctuation in dual-source systems with electric pumps?
Outlet equipped with slow-closing check valve + motorized butterfly valve linkage. Control cabinet runs “pressure PID closed-loop + VFD soft-start” logic for bumpless primary/standby switching, maintaining ±0.05 MPa stability.
