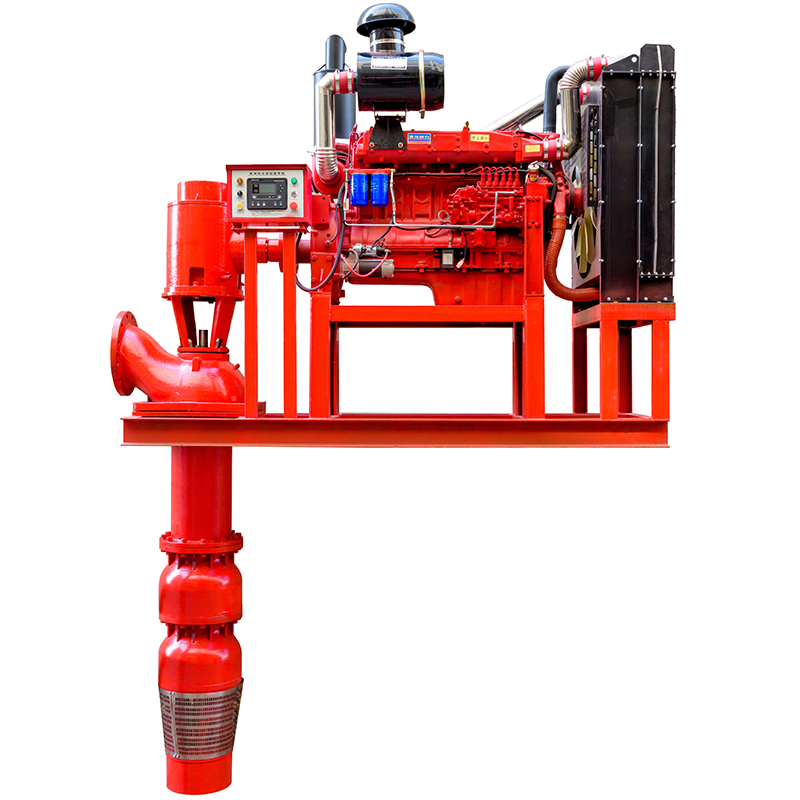

The Diesel-Engine Driven Vertical Long-Shaft Deep Well Fire Pump Set is an emergency fire water supply equipment featuring an integrated diesel power unit with concentric long-shaft transmission, configured with an H-type right-angle gearbox (transmission efficiency ≥95%), modular stage arrangement, and 5-second rapid auto-start control system for stable high-flow high-head delivery.
Resolves four critical operational risks in conventional deep-well fire pumps: high maintenance hazards in underwater well environments, shaft vibration and uneven wear reducing service life, delayed start-up during grid power failure, and transmission efficiency degradation under prolonged operation.
Suitable for fire hydrant systems in industrial facilities, automatic sprinkler systems in high-rise buildings, municipal pipeline boosting, and emergency fire protection in docks/offshore platforms/remote plants without grid power, requiring compliance with GB 6245-2006 standard, zero grid dependency, and continuous operation under complex fire protection conditions.
Extended Service Life: Bronze-base self-lubricating bearings + 2Cr13 stainless steel transmission shaft resist wear & misalignment. Combined with G2.5 dynamically balanced impeller, design lifespan ≥20 years—over 40% longer than standard deep-well fire pumps.
Significant Energy Savings: Diesel direct drive eliminates power conversion losses. H-type gearbox transmission efficiency ≥95%. Rated fuel consumption ≤210 g/kW·h, reducing comprehensive energy consumption by 15%–20% vs. “grid + electric pump” emergency solutions.
Lower Maintenance Costs: Surface-concentrated layout + modular quick-connect interfaces enable routine maintenance without well entry. Single technician completes seal/bearing replacement within 2 hours, reducing labor costs by 55%.
Lightweight & Compact Design: Integrated motor + gearbox + pump base at wellhead reduces overall weight by ~18% for equivalent head ratings, lowering wellhead load requirements & lifting complexity.
Faster Installation: Pre-aligned flanges + quick-install pump base enable vertical alignment & fixation on-site. Standard units reach commissioning readiness within 4 hours from positioning, compressing deployment cycle by 40%.
Fire Extinguishing Systems: Indoor/outdoor hydrant systems, automatic sprinkler systems, and water mist fire systems for industrial enterprises, construction projects, and high-rise buildings, ensuring rapid water supply within 5 seconds during power outages.
Municipal & Industrial Water Supply: Shared domestic/industrial water systems, municipal network boosting, long-distance water conveyance, and industrial park water supply integration, supporting high-flow, high-head continuous operation.
Off-Grid/Power-Outage Emergency: Docks, offshore platforms, remote plants, tunnels, substations with unstable or absent grid power. Diesel independent drive ensures zero-delay pump startup during power loss.
Media Compatibility: Ambient clean water or neutral liquids with similar physicochemical properties. Solids ≤0.01%, pH 6.5–8.5, H₂S ≤1.5 mg/L, water temperature ≤40℃/104℉, free of solid particles & abrasive impurities.
 | NO. | Name | Description |
| 1 | Gearbox | Vertical Turbine Pump Gear Drive | |
| 2 | Gearbox Support Bracket | Carbon Steel Construction, Heavy-Duty Load Rating | |
| 3 | Lock Nut / Locking Nut | Lock Nut for Securing Adjustment Assembly | |
| 4 | Adjusting Nut / Adjustment Nut | Impeller Axial Clearance Adjusting Nut | |
| 5 | Grease Nipple | Grease Fitting / Zerk Fitting for Thrust Bearing | |
| 6 | Upper & Lower Oil Seals | Oil Seal / Shaft Seal for Lubricant Retention | |
| 7 | Thrust Bearing | Thrust Bearing | |
| 8 | Mechanical Seal Gland | Bearing Housing with Mechanical Seal Gland | |
| 9 | Mechanical Seal | Tungsten Carbide vs. Silicon Carbide Seal Faces | |
| 10 | Seal Positioning Ring | Carbon Steel Seal Positioning Ring / Locator Ring | |
| 11 | Discharge Head | Ductile Iron QT400-18 | |
| 12 | Pump Casing Support Bracket | Ductile Iron QT400-18 | |
| 13 | Casing Support Bearing | Wear-Resistant Bronze Alloy | |
| 14 | Drive Shaft Coupling | Cast Steel ZG235-450 | |
| 15 | Shaft | Martensitic Stainless Steel 20Cr13 | |
| 16 | Column Pipe Support Bracket | Ductile Iron QT400-18 | |
| 17 | Column Pipe Bearing | Wear-Resistant Bronze Alloy Bearing Bushing | |
| 18 | Upper Diffuser | Ductile Iron QT400-18 | |
| 19 | Diffuser Bearing | Wear-Resistant Bronze Alloy | |
| 20 | Tapered Adapter Sleeve | 20Cr13 Stainless Steel Shaft | |
| 21 | Impeller | 20Cr13 Stainless Steel | |
| 22 | Intermediate Diffuser | Ductile Iron QT400-18 Diffuser / Bowl | |
| 23 | Suction Inlet Bearing | Wear-Resistant Bronze Alloy Bowl Bearing | |
| 24 | Suction Inlet | Ductile Iron QT400-18 Suction Bell / Intake | |
| 25 | Strainer | Austenitic Stainless Steel 304 | |
| 26 | High-Pressure Thrust Bearing | PTFE Composite + Hardened Alloy Steel Thrust Disc | |
| 27 | Diesel Engine Coupling | Flexible Pin-and-Bush Coupling / Elastic Pin Coupling | |
| 28 | Diesel Engine | Diesel Engine for Pump Drive | |
| 29 | Cooling System | Closed-Circuit Air Cooling / Heat Exchanger Cooling System |
Performance Data Table 1
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 1 | XBC5.0/30GJ-CD | 30 | 50 | 30 | 3000 | 12 | 100L | 100 |
| 2 | XBC6.0/30GJ-CD | 30 | 60 | 30 | 3000 | 12 | 100L | 100 |
| 3 | XBC7.0/30GJ-CD | 30 | 70 | 45 | 3000 | 12 | 100L | 100 |
| 4 | XBC8.0/30GJ-CD | 30 | 80 | 45 | 3000 | 12 | 100L | 100 |
| 5 | XBC9.0/30GJ-CD | 30 | 90 | 55 | 3000 | 12 | 100L | 100 |
| 6 | XBC10.0/30GJ-CD | 30 | 100 | 55 | 3000 | 12 | 100L | 100 |
| 7 | XBC11.0/30GJ-CD | 30 | 110 | 72 | 3000 | 12 | 100L | 100 |
| 8 | XBC12.0/30GJ-CD | 30 | 120 | 72 | 3000 | 12 | 100L | 100 |
| 9 | XBC13.0/30GJ-CD | 30 | 130 | 72 | 3000 | 12 | 100L | 100 |
| 10 | XBC14.0/30GJ-CD | 30 | 140 | 90 | 3000 | 12 | 100L | 100 |
| 11 | XBC15.0/30GJ-CD | 30 | 150 | 90 | 3000 | 12 | 100L | 100 |
| 12 | XBC16.0/30GJ-CD | 30 | 160 | 90 | 3000 | 12 | 100L | 100 |
| 13 | XBC17.0/30GJ-CD | 30 | 170 | 90 | 3000 | 12 | 100L | 100 |
| 14 | XBC18.0/30GJ-CD | 30 | 180 | 110 | 1500 | 24 | 200L | 100 |
| 15 | XBC19.0/30GJ-CD | 30 | 190 | 110 | 1500 | 24 | 200L | 100 |
| 16 | XBC20.0/30GJ-CD | 30 | 200 | 110 | 1500 | 24 | 200L | 100 |
| 17 | XBC5.0/40GJ-CD | 40 | 50 | 45 | 3000 | 12 | 100L | 150 |
| 18 | XBC6.0/40GJ-CD | 40 | 60 | 45 | 3000 | 12 | 100L | 150 |
| 19 | XBC7.0/40GJ-CD | 40 | 70 | 55 | 3000 | 12 | 100L | 150 |
| 20 | XBC8.0/40GJ-CD | 40 | 80 | 72 | 3000 | 12 | 100L | 150 |
| 21 | XBC9.0/40GJ-CD | 40 | 90 | 72 | 3000 | 12 | 100L | 150 |
| 22 | XBC10.0/40GJ-CD | 40 | 100 | 72 | 3000 | 12 | 100L | 150 |
| 23 | XBC11.0/40GJ-CD | 40 | 110 | 90 | 3000 | 12 | 100L | 150 |
| 24 | XBC12.0/40GJ-CD | 40 | 120 | 90 | 3000 | 12 | 100L | 150 |
| 25 | XBC13.0/40GJ-CD | 40 | 130 | 90 | 3000 | 12 | 100L | 150 |
| 26 | XBC14.0/40GJ-CD | 40 | 140 | 110 | 1500 | 24 | 200L | 150 |
| 27 | XBC15.0/40GJ-CD | 40 | 150 | 110 | 1500 | 24 | 200L | 150 |
| 28 | XBC16.0/40GJ-CD | 40 | 160 | 132 | 1500 | 24 | 200L | 150 |
| 29 | XBC17.0/40GJ-CD | 40 | 170 | 132 | 1500 | 24 | 200L | 150 |
| 30 | XBC18.0/40GJ-CD | 40 | 180 | 132 | 1500 | 24 | 200L | 150 |
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 31 | XBC19.0/40GJ-CD | 40 | 190 | 155 | 1500 | 24 | 200L | 150 |
| 32 | XBC20.0/40GJ-CD | 40 | 200 | 155 | 1500 | 24 | 200L | 150 |
| 33 | XBC5.0/50GJ-CD | 50 | 50 | 55 | 3000 | 12 | 100L | 150 |
| 34 | XBC6.0/50GJ-CD | 50 | 60 | 55 | 3000 | 12 | 100L | 150 |
| 35 | XBC7.0/50GJ-CD | 50 | 70 | 72 | 3000 | 12 | 100L | 150 |
| 36 | XBC8.0/50GJ-CD | 50 | 80 | 72 | 3000 | 12 | 100L | 150 |
| 37 | XBC9.0/50GJ-CD | 50 | 90 | 90 | 3000 | 12 | 100L | 150 |
| 38 | XBC10.0/50GJ-CD | 50 | 100 | 90 | 3000 | 12 | 100L | 150 |
| 39 | XBC11.0/50GJ-CD | 50 | 110 | 110 | 1500 | 24 | 200L | 150 |
| 40 | XBC12.0/50GJ-CD | 50 | 120 | 110 | 1500 | 24 | 200L | 150 |
| 41 | XBC13.0/50GJ-CD | 50 | 130 | 132 | 1500 | 24 | 200L | 150 |
| 42 | XBC14.0/50GJ-CD | 50 | 140 | 132 | 1500 | 24 | 200L | 150 |
| 43 | XBC15.0/50GJ-CD | 50 | 150 | 155 | 1500 | 24 | 200L | 150 |
| 44 | XBC16.0/50GJ-CD | 50 | 160 | 155 | 1500 | 24 | 200L | 150 |
| 45 | XBC17.0/50GJ-CD | 50 | 170 | 155 | 1500 | 24 | 200L | 150 |
| 46 | XBC18.0/50GJ-CD | 50 | 180 | 180 | 1500 | 24 | 300L | 150 |
| 47 | XBC19.0/50GJ-CD | 50 | 190 | 180 | 1500 | 24 | 300L | 150 |
| 48 | XBC20.0/50GJ-CD | 50 | 200 | 180 | 1500 | 24 | 300L | 150 |
| 49 | XBC5.0/60GJ-CD | 60 | 50 | 55 | 3000 | 12 | 100L | 150 |
| 50 | XBC6.0/60GJ-CD | 60 | 60 | 72 | 3000 | 12 | 100L | 150 |
| 51 | XBC7.0/60GJ-CD | 60 | 70 | 90 | 3000 | 12 | 100L | 150 |
| 52 | XBC8.0/60GJ-CD | 60 | 80 | 90 | 3000 | 12 | 100L | 150 |
| 53 | XBC9.0/60GJ-CD | 60 | 90 | 110 | 1500 | 24 | 200L | 150 |
| 54 | XBC10.0/60GJ-CD | 60 | 100 | 110 | 1500 | 24 | 200L | 150 |
| 55 | XBC11.0/60GJ-CD | 60 | 110 | 132 | 1500 | 24 | 200L | 150 |
| 56 | XBC12.0/60GJ-CD | 60 | 120 | 132 | 1500 | 24 | 200L | 150 |
| 57 | XBC13.0/60GJ-CD | 60 | 130 | 155 | 1500 | 24 | 200L | 150 |
| 58 | XBC14.0/60GJ-CD | 60 | 140 | 155 | 1500 | 24 | 200L | 150 |
| 59 | XBC15.0/60GJ-CD | 60 | 150 | 180 | 1500 | 24 | 300L | 150 |
| 60 | XBC16.0/60GJ-CD | 60 | 160 | 180 | 1500 | 24 | 300L | 150 |
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 61 | XBC17.0/60GJ-CD | 60 | 170 | 200 | 1500 | 24 | 300L | 150 |
| 62 | XBC18.0/60GJ-CD | 60 | 180 | 200 | 1500 | 24 | 300L | 150 |
| 63 | XBC19.0/60GJ-CD | 60 | 190 | 258 | 1500 | 24 | 300L | 150 |
| 64 | XBC20.0/60GJ-CD | 60 | 200 | 258 | 1500 | 24 | 300L | 150 |
| 65 | XBC5.0/70GJ-CD | 70 | 50 | 72 | 3000 | 12 | 100L | 150 |
| 66 | XBC6.0/70GJ-CD | 70 | 60 | 90 | 3000 | 12 | 100L | 150 |
| 67 | XBC7.0/70GJ-CD | 70 | 70 | 90 | 3000 | 12 | 100L | 150 |
| 68 | XBC8.0/70GJ-CD | 70 | 80 | 110 | 1800 | 24 | 200L | 150 |
| 69 | XBC9.0/70GJ-CD | 70 | 90 | 110 | 1800 | 24 | 200L | 150 |
| 70 | XBC10.0/70GJ-CD | 70 | 100 | 132 | 1800 | 24 | 200L | 150 |
| 71 | XBC11.0/70GJ-CD | 70 | 110 | 155 | 1800 | 24 | 200L | 150 |
| 72 | XBC12.0/70GJ-CD | 70 | 120 | 155 | 1800 | 24 | 200L | 150 |
| 73 | XBC13.0/70GJ-CD | 70 | 130 | 180 | 1800 | 24 | 300L | 150 |
| 74 | XBC14.0/70GJ-CD | 70 | 140 | 180 | 1800 | 24 | 300L | 150 |
| 75 | XBC15.0/70GJ-CD | 70 | 150 | 200 | 1800 | 24 | 300L | 150 |
| 76 | XBC16.0/70GJ-CD | 70 | 160 | 200 | 1800 | 24 | 300L | 150 |
| 77 | XBC17.0/70GJ-CD | 70 | 170 | 258 | 1800 | 24 | 300L | 150 |
| 78 | XBC18.0/70GJ-CD | 70 | 180 | 258 | 1800 | 24 | 300L | 150 |
| 79 | XBC19.0/70GJ-CD | 70 | 190 | 258 | 1800 | 24 | 300L | 150 |
| 80 | XBC20.0/70GJ-CD | 70 | 200 | 258 | 1800 | 24 | 300L | 150 |
| 81 | XBC5.0/80GJ-CD | 80 | 50 | 72 | 3000 | 12 | 100L | 200 |
| 82 | XBC6.0/80GJ-CD | 80 | 60 | 90 | 3000 | 12 | 100L | 200 |
| 83 | XBC7.0/80GJ-CD | 80 | 70 | 110 | 1800 | 24 | 200L | 200 |
| 84 | XBC8.0/80GJ-CD | 80 | 80 | 132 | 1800 | 24 | 200L | 200 |
| 85 | XBC9.0/80GJ-CD | 80 | 90 | 132 | 1800 | 24 | 200L | 200 |
| 86 | XBC10.0/80GJ-CD | 80 | 100 | 155 | 1800 | 24 | 200L | 200 |
| 87 | XBC11.0/80GJ-CD | 80 | 110 | 180 | 1800 | 24 | 300L | 200 |
| 88 | XBC12.0/80GJ-CD | 80 | 120 | 180 | 1800 | 24 | 300L | 200 |
| 89 | XBC13.0/80GJ-CD | 80 | 130 | 200 | 1800 | 24 | 300L | 200 |
| 90 | XBC14.0/80GJ-CD | 80 | 140 | 200 | 1800 | 24 | 300L | 200 |
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 151 | XBC19.0/110GJ-CD | 110 | 190 | 400 | 1500 | 24 | 500L | 250 |
| 152 | XBC20.0/110GJ-CD | 110 | 200 | 400 | 1500 | 24 | 500L | 250 |
| 153 | XBC5.0/120GJ-CD | 120 | 50 | 90 | 3000 | 12 | 100L | 250 |
| 154 | XBC6.0/120GJ-CD | 120 | 60 | 110 | 1500 | 24 | 200L | 250 |
| 155 | XBC7.0/120GJ-CD | 120 | 70 | 168 | 1500 | 24 | 300L | 250 |
| 156 | XBC8.0/120GJ-CD | 120 | 80 | 180 | 1500 | 24 | 300L | 250 |
| 157 | XBC9.0/120GJ-CD | 120 | 90 | 180 | 1500 | 24 | 300L | 250 |
| 158 | XBC10.0/120GJ-CD | 120 | 100 | 180 | 1500 | 24 | 300L | 250 |
| 159 | XBC11.0/120GJ-CD | 120 | 110 | 200 | 1500 | 24 | 300L | 250 |
| 160 | XBC12.0/120GJ-CD | 120 | 120 | 258 | 1500 | 24 | 300L | 250 |
| 161 | XBC13.0/120GJ-CD | 120 | 130 | 258 | 1500 | 24 | 300L | 250 |
| 162 | XBC14.0/120GJ-CD | 120 | 140 | 258 | 1500 | 24 | 300L | 250 |
| 163 | XBC15.0/120GJ-CD | 120 | 150 | 326 | 1500 | 24 | 500L | 250 |
| 164 | XBC16.0/120GJ-CD | 120 | 160 | 326 | 1500 | 24 | 500L | 250 |
| 165 | XBC17.0/120GJ-CD | 120 | 170 | 326 | 1500 | 24 | 500L | 250 |
| 166 | XBC18.0/120GJ-CD | 120 | 180 | 326 | 1500 | 24 | 500L | 250 |
| 167 | XBC19.0/120GJ-CD | 120 | 190 | 400 | 1500 | 24 | 500L | 250 |
| 168 | XBC20.0/120GJ-CD | 120 | 200 | 400 | 1500 | 24 | 500L | 250 |
| 169 | XBC21.0/120GJ-CD | 120 | 210 | 400 | 1500 | 24 | 500L | 250 |
| 170 | XBC22.0/120GJ-CD | 120 | 220 | 400 | 1500 | 24 | 500L | 250 |
| 171 | XBC23.0/120GJ-CD | 120 | 230 | 450 | 1500 | 24 | 800L | 250 |
| 172 | XBC24.0/120GJ-CD | 120 | 240 | 450 | 1500 | 24 | 800L | 250 |
| 173 | XBC5.0/130GJ-CD | 130 | 50 | 90 | 1500 | 24 | 100L | 250 |
| 174 | XBC6.0/130GJ-CD | 130 | 60 | 110 | 1500 | 24 | 200L | 250 |
| 175 | XBC7.0/130GJ-CD | 130 | 70 | 168 | 1500 | 24 | 300L | 250 |
| 176 | XBC8.0/130GJ-CD | 130 | 80 | 180 | 1500 | 24 | 300L | 250 |
| 177 | XBC9.0/130GJ-CD | 130 | 90 | 180 | 1500 | 24 | 300L | 250 |
| 178 | XBC10.0/130GJ-CD | 130 | 100 | 180 | 1500 | 24 | 300L | 250 |
| 179 | XBC11.0/130GJ-CD | 130 | 110 | 200 | 1500 | 24 | 300L | 250 |
| 180 | XBC12.0/130GJ-CD | 130 | 120 | 258 | 1500 | 24 | 300L | 250 |
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 181 | XBC13.0/130GJ-CD | 130 | 130 | 258 | 1500 | 24 | 300L | 250 |
| 182 | XBC14.0/130GJ-CD | 130 | 140 | 258 | 1500 | 24 | 300L | 250 |
| 183 | XBC15.0/130GJ-CD | 130 | 150 | 326 | 1500 | 24 | 500L | 250 |
| 184 | XBC16.0/130GJ-CD | 130 | 160 | 326 | 1500 | 24 | 500L | 250 |
| 185 | XBC17.0/130GJ-CD | 130 | 170 | 326 | 1500 | 24 | 500L | 250 |
| 186 | XBC18.0/130GJ-CD | 130 | 180 | 326 | 1500 | 24 | 500L | 250 |
| 187 | XBC19.0/130GJ-CD | 130 | 190 | 400 | 1500 | 24 | 500L | 250 |
| 188 | XBC20.0/130GJ-CD | 130 | 200 | 400 | 1500 | 24 | 500L | 250 |
| 189 | XBC21.0/130GJ-CD | 130 | 210 | 400 | 1500 | 24 | 500L | 250 |
| 190 | XBC22.0/130GJ-CD | 130 | 220 | 400 | 1500 | 24 | 500L | 250 |
| 191 | XBC23.0/130GJ-CD | 130 | 230 | 450 | 1500 | 24 | 800L | 250 |
| 192 | XBC24.0/130GJ-CD | 130 | 240 | 450 | 1500 | 24 | 800L | 250 |
| 193 | XBC5.0/140GJ-CD | 140 | 50 | 110 | 1500 | 24 | 200L | 250 |
| 194 | XBC6.0/140GJ-CD | 140 | 60 | 168 | 1500 | 24 | 300L | 250 |
| 195 | XBC7.0/140GJ-CD | 140 | 70 | 180 | 1500 | 24 | 300L | 250 |
| 196 | XBC8.0/140GJ-CD | 140 | 80 | 180 | 1500 | 24 | 300L | 250 |
| 197 | XBC9.0/140GJ-CD | 140 | 90 | 180 | 1500 | 24 | 300L | 250 |
| 198 | XBC10.0/140GJ-CD | 140 | 100 | 200 | 1500 | 24 | 300L | 250 |
| 199 | XBC11.0/140GJ-CD | 140 | 110 | 258 | 1500 | 24 | 300L | 250 |
| 200 | XBC12.0/140GJ-CD | 140 | 120 | 258 | 1500 | 24 | 300L | 250 |
| 201 | XBC13.0/140GJ-CD | 140 | 130 | 258 | 1500 | 24 | 300L | 250 |
| 202 | XBC14.0/140GJ-CD | 140 | 140 | 326 | 1500 | 24 | 500L | 250 |
| 203 | XBC15.0/140GJ-CD | 140 | 150 | 326 | 1500 | 24 | 500L | 250 |
| 204 | XBC16.0/140GJ-CD | 140 | 160 | 326 | 1500 | 24 | 500L | 250 |
| 205 | XBC17.0/140GJ-CD | 140 | 170 | 326 | 1500 | 24 | 500L | 250 |
| 206 | XBC18.0/140GJ-CD | 140 | 180 | 400 | 1500 | 24 | 500L | 250 |
| 207 | XBC19.0/140GJ-CD | 140 | 190 | 400 | 1500 | 24 | 500L | 250 |
| 208 | XBC20.0/140GJ-CD | 140 | 200 | 400 | 1500 | 24 | 500L | 250 |
| 209 | XBC5.0/150GJ-CD | 150 | 50 | 110 | 1500 | 24 | 200L | 250 |
| 210 | XBC6.0/150GJ-CD | 150 | 60 | 168 | 1500 | 24 | 300L | 250 |
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 211 | XBC7.0/150GJ-CD | 150 | 70 | 180 | 1500 | 24 | 300L | 250 |
| 212 | XBC8.0/150GJ-CD | 150 | 80 | 180 | 1500 | 24 | 300L | 250 |
| 213 | XBC9.0/150GJ-CD | 150 | 90 | 180 | 1500 | 24 | 300L | 250 |
| 214 | XBC10.0/150GJ-CD | 150 | 100 | 200 | 1500 | 24 | 300L | 250 |
| 215 | XBC11.0/150GJ-CD | 150 | 110 | 258 | 1500 | 24 | 300L | 250 |
| 216 | XBC12.0/150GJ-CD | 150 | 120 | 258 | 1500 | 24 | 300L | 250 |
| 217 | XBC13.0/150GJ-CD | 150 | 130 | 258 | 1500 | 24 | 300L | 250 |
| 218 | XBC14.0/150GJ-CD | 150 | 140 | 326 | 1500 | 24 | 500L | 250 |
| 219 | XBC¹5.0/150GJ-CD | 150 | 150 | 326 | 1500 | 24 | 500L | 250 |
| 220 | XBC16.0/150GJ-CD | 150 | 160 | 326 | 1500 | 24 | 500L | 250 |
| 221 | XBC17.0/150GJ-CD | 150 | 170 | 326 | 1500 | 24 | 500L | 250 |
| 222 | XBC18.0/150GJ-CD | 150 | 180 | 400 | 1500 | 24 | 500L | 250 |
| 223 | XBC19.0/150GJ-CD | 150 | 190 | 400 | 1500 | 24 | 500L | 250 |
| 224 | XBC20.0/150GJ-CD | 150 | 200 | 400 | 1500 | 24 | 500L | 250 |
| 225 | XBC5.0/160GJ-CD | 160 | 50 | 110 | 1500 | 24 | 200L | 250 |
| 226 | XBC6.0/160GJ-CD | 160 | 60 | 168 | 1500 | 24 | 300L | 250 |
| 227 | XBC7.0/160GJ-CD | 160 | 70 | 180 | 1500 | 24 | 300L | 250 |
| 228 | XBC8.0/160GJ-CD | 160 | 80 | 180 | 1500 | 24 | 300L | 250 |
| 229 | XBC9.0/160GJ-CD | 160 | 90 | 180 | 1500 | 24 | 300L | 250 |
| 230 | XBC10.0/160GJ-CD | 160 | 100 | 200 | 1500 | 24 | 300L | 250 |
| 231 | XBC11.0/160GJ-CD | 160 | 110 | 258 | 1500 | 24 | 300L | 250 |
| 232 | XBC12.0/160GJ-CD | 160 | 120 | 258 | 1500 | 24 | 300L | 250 |
| 233 | XBC13.0/160GJ-CD | 160 | 130 | 258 | 1500 | 24 | 300L | 250 |
| 234 | XBC14.0/160GJ-CD | 160 | 140 | 326 | 1500 | 24 | 500L | 250 |
| 235 | XBC15.0/160GJ-CD | 160 | 150 | 326 | 1500 | 24 | 500L | 250 |
| 236 | XBC16.0/160GJ-CD | 160 | 160 | 326 | 1500 | 24 | 500L | 250 |
| 237 | XBC17.0/160GJ-CD | 160 | 170 | 326 | 1500 | 24 | 500L | 250 |
| 238 | XBC18.0/160GJ-CD | 160 | 180 | 400 | 1500 | 24 | 500L | 250 |
| 239 | XBC19.0/160GJ-CD | 160 | 190 | 400 | 1500 | 24 | 500L | 250 |
| 240 | XBC20.0/160GJ-CD | 160 | 200 | 400 | 1500 | 24 | 500L | 250 |
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 241 | XBC21.0/160GJ-CD | 160 | 210 | 450 | 1500 | 24 | 800L | 250 |
| 242 | XBC22.0/160GJ-CD | 160 | 220 | 450 | 1500 | 24 | 800L | 250 |
| 243 | XBC23.0/160GJ-CD | 160 | 230 | 500 | 1500 | 24 | 800L | 250 |
| 244 | XBC24.0/160GJ-CD | 160 | 240 | 500 | 1500 | 24 | 800L | 250 |
| 245 | XBC5.0/180GJ-CD | 180 | 50 | 168 | 1500 | 24 | 300L | 300 |
| 246 | XBC6.0/180GJ-CD | 180 | 60 | 180 | 1500 | 24 | 300L | 300 |
| 247 | XBC7.0/180GJ-CD | 180 | 70 | 180 | 1500 | 24 | 300L | 300 |
| 248 | XBC8.0/180GJ-CD | 180 | 80 | 180 | 1500 | 24 | 300L | 300 |
| 249 | XBC9.0/180GJ-CD | 180 | 90 | 200 | 1500 | 24 | 300L | 300 |
| 250 | XBC10.0/180GJ-CD | 180 | 100 | 258 | 1500 | 24 | 300L | 300 |
| 251 | XBC11.0/180GJ-CD | 180 | 110 | 258 | 1500 | 24 | 300L | 300 |
| 252 | XBC12.0/180GJ-CD | 180 | 120 | 258 | 1500 | 24 | 300L | 300 |
| 253 | XBC13.0/180GJ-CD | 180 | 130 | 326 | 1500 | 24 | 500L | 300 |
| 254 | XBC14.0/180GJ-CD | 180 | 140 | 326 | 1500 | 24 | 500L | 300 |
| 255 | XBC15.0/180GJ-CD | 180 | 150 | 326 | 1500 | 24 | 500L | 300 |
| 256 | XBC16.0/180GJ-CD | 180 | 160 | 326 | 1500 | 24 | 500L | 300 |
| 257 | XBC17.0/180GJ-CD | 180 | 170 | 400 | 1500 | 24 | 500L | 300 |
| 258 | XBC18.0/180GJ-CD | 180 | 180 | 400 | 1500 | 24 | 500L | 300 |
| 259 | XBC19.0/180GJ-CD | 180 | 190 | 400 | 1500 | 24 | 500L | 300 |
| 260 | XBC20.0/180GJ-CD | 180 | 200 | 450 | 1500 | 24 | 800L | 300 |
| 261 | XBC5.0/200GJ-CD | 200 | 50 | 168 | 1500 | 24 | 300L | 300 |
| 262 | XBC6.0/200GJ-CD | 200 | 60 | 180 | 1500 | 24 | 300L | 300 |
| 263 | XBC7.0/200GJ-CD | 200 | 70 | 180 | 1500 | 24 | 300L | 300 |
| 264 | XBC8.0/200GJ-CD | 200 | 80 | 180 | 1500 | 24 | 300L | 300 |
| 265 | XBC9.0/200GJ-CD | 200 | 90 | 200 | 1500 | 24 | 300L | 300 |
| 266 | XBC10.0/200GJ-CD | 200 | 100 | 258 | 1500 | 24 | 300L | 300 |
| 267 | XBC11.0/200GJ-CD | 200 | 110 | 258 | 1500 | 24 | 300L | 300 |
| 268 | XBC12.0/200GJ-CD | 200 | 120 | 258 | 1500 | 24 | 300L | 300 |
| 269 | XBC13.0/200GJ-CD | 200 | 130 | 326 | 1500 | 24 | 500L | 300 |
| 270 | XBC14.0/200GJ-CD | 200 | 140 | 326 | 1500 | 24 | 500L | 300 |
| No. | Detailed Model Number | Rated Flow | Rated Head | Rated Power | Rated Speed | Starting Voltage | Fuel Tank Specifications | Outlet Diameter |
| I/s | m | kW | r/min | V | L | mm | ||
| 271 | XBC15.0/200GJ-CD | 200 | 150 | 326 | 1500 | 24 | 500L | 300 |
| 272 | XBC16.0/200GJ-CD | 200 | 160 | 326 | 1500 | 24 | 500L | 300 |
| 273 | XBC17.0/200GJ-CD | 200 | 170 | 400 | 1500 | 24 | 500L | 300 |
| 274 | XBC18.0/200GJ-CD | 200 | 180 | 400 | 1500 | 24 | 500L | 300 |
| 275 | XBC19.0/200GJ-CD | 200 | 190 | 400 | 1500 | 24 | 500L | 300 |
| 276 | XBC20.0/200GJ-CD | 200 | 200 | 450 | 1500 | 24 | 800L | 300 |
| 277 | XBC21.0/200GJ-CD | 200 | 210 | 450 | 1500 | 24 | 800L | 300 |
| 278 | XBC22.0/200GJ-CD | 200 | 220 | 500 | 1500 | 24 | 800L | 300 |
| 279 | XBC23.0/200GJ-CD | 200 | 230 | 500 | 1500 | 24 | 800L | 300 |
| 280 | XBC24.0/200GJ-CD | 200 | 240 | 550 | 1500 | 24 | 800L | 300 |
| 281 | XBC4.2/220GJ-CD | 220 | 42 | 200 | 1500 | 24 | 300L | 300 |
| 282 | XBC5.0/220GJ-CD | 220 | 50 | 258 | 1500 | 24 | 300L | 300 |
| 283 | XBC6.0/220GJ-CD | 220 | 60 | 258 | 1500 | 24 | 300L | 300 |
| 284 | XBC7.0/220GJ-CD | 220 | 70 | 258 | 1500 | 24 | 300L | 300 |
| 285 | XBC8.0/220GJ-CD | 220 | 80 | 326 | 1500 | 24 | 500L | 300 |
| 286 | XBC9.0/220GJ-CD | 220 | 90 | 326 | 1500 | 24 | 500L | 300 |
| 287 | XBC10.0/220GJ-CD | 220 | 100 | 326 | 1500 | 24 | 500L | 300 |
| 288 | XBC11.0/220GJ-CD | 220 | 110 | 326 | 1500 | 24 | 500L | 300 |
| 289 | XBC12.0/220GJ-CD | 220 | 120 | 400 | 1500 | 24 | 500L | 300 |
| 290 | XBC13.0/220GJ-CD | 220 | 130 | 400 | 1500 | 24 | 500L | 300 |
| 291 | XBC14.0/220GJ-CD | 220 | 140 | 400 | 1500 | 24 | 500L | 300 |
| 292 | XBC15.0/220GJ-CD | 220 | 150 | 450 | 1500 | 24 | 800L | 300 |
| 293 | XBC16.0/220GJ-CD | 220 | 160 | 450 | 1500 | 24 | 800L | 300 |
| 294 | XBC17.0/220GJ-CD | 220 | 170 | 500 | 1500 | 24 | 80OL | 300 |
| 295 | XBC18.0/220GJ-CD | 220 | 180 | 550 | 1500 | 24 | 80OL | 300 |
| 296 | XBC19.0/220GJ-CD | 220 | 190 | 550 | 1500 | 24 | 80OL | 300 |
| 297 | XBC20.0/220GJ-CD | 220 | 200 | 600 | 1500 | 24 | 800L | 300 |
| 298 | XBC21.0/220GJ-CD | 220 | 210 | 650 | 1500 | 24 | 800L | 300 |
| 299 | XBC22.0/220GJ-CD | 220 | 220 | 700 | 1500 | 24 | 100OL | 300 |
| 300 | XBC23.0/220GJ-CD | 220 | 230 | 750 | 1500 | 24 | 100OL | 300 |
Media Requirements • Media type: Ambient clean water or similar neutral liquids • Solid content: ≤0.01% (by weight) • Water quality: pH 6.5–8.5; H₂S ≤1.5 mg/L
Temperature Limits • Media temperature: ≤40°C (≤104°F) • Ambient temperature: <40°C (<104°F)
System Limits • Suction pressure: ≤1.0 MPa (≤145 psi) • System working pressure: ≤1.6 MPa (≤232 psi) • Particle limits: Solids ≤0.1%, particle size <0.2 mm (specify at order for particulate media)
Environmental Limits • Altitude: <1000 m (<3280 ft) • Relative humidity: <95% (non-condensing) • Installation environment: Free of corrosive gases
Note: For special conditions (high temperature / strong corrosion / high sand content / ultra-deep wells / extreme cold), please consult our engineering team before selection. Customized pump solutions available.
Mandatory Fire Certification: Strictly manufactured per GB 6245-2006 “Performance Requirements and Test Methods for Fire Pumps”. Passed type testing by National Fire Equipment Quality Supervision & Inspection Center. CCCF-certified models available upon request.
Diesel Emission Certification: Equipped with premium domestic/imported diesel engines, compliant with GB 20891-2014 non-road mobile machinery emission standards (Stage IIIA/IIIB optional), meeting environmental access requirements.
International Quality System: ISO 9001:2015 certified. Core pressure-bearing components evaluated per CE/PED 2014/68/EU, meeting EU/US market entry requirements.
Factory Inspection Standard: Every unit undergoes 1.5× rated pressure hydrostatic test (5-min hold) + long-shaft concentricity calibration (radial runout ≤0.15 mm) + 5-second startup response verification + 24-hour load running test, guaranteeing zero-fault delivery.
Fast Standard Delivery: Covers flow 50–2000 m³/h, head 30–300 m. Standard domestic premium diesel + 2Cr13 stainless steel transmission shaft + bronze-base bearings. Technical confirmation within 72 hours.
Deep Customization Capabilities:
Material Upgrade: Wetted parts optional in 304/316/duplex 2205 stainless steel for high-chloride, mild acid/alkali, or seawater desalination pretreatment conditions.
Transmission System: Optional H-type/spiral bevel gearbox, universal joint coupling, sand-resistant bearing assembly for sandy water or ultra-deep well (>200 m) conditions.
Control Expansion: Standard auto-start control cabinet; optional dual-power transfer, remote monitoring, IoT cloud platform, auto-inspection/preheating/dual-battery modules.
Structural Adaptation: Custom column pipe length, pump base flange standard switching (GB/ANSI/DIN), wellhead reinforcement brackets, outdoor rain/soundproof canopy customization.
Please contact us for customization inquiries. Our engineering team delivers process proposals within 48 hours.
Installation Key Points:
1.Fix pump base horizontally on wellhead concrete foundation. Tighten anchor bolts symmetrically. Ensure pump shaft verticality ≤0.5 mm/m to prevent seal failure from long-shaft misalignment wear.
2.Connect column pipes via flanges. Install one pipe clamp per 10 m to ensure uniform axial load distribution. Never transmit pipe stress to pump body.
3.Use pre-aligned couplings for transmission shaft connection. Tighten bolts symmetrically per torque requirements. Manually rotate shaft 3 turns after initial installation to confirm no binding.
4.Route diesel exhaust system independently outdoors. Install silencer + rain cap. Ensure exhaust pipe slope ≥1% for condensate drainage. Position fuel tank below unit. Configure fuel line with filter + manual shut-off valve.
Commissioning Process: Vent fuel system → Manual shaft rotation check → Jog test for direction → 5-second startup response test → No-load run 10 min → Slowly open discharge valve to rated duty → Record RPM/pressure/vibration/exhaust data → Acceptance.
Request the “XBC Diesel Deep-Well Fire Pump Set Installation & Maintenance Manual” (PDF/English version) for complete dimensional drawings, column pipe connection specs, and commissioning logs.
Q1: How does diesel drive achieve pump startup within 5 seconds of power loss?
Control cabinet monitors grid status in real-time. Upon power loss signal, diesel engine ignites within 2s + reaches rated RPM within 3s. With pre-lubrication system, tested to deliver rated flow within 5 seconds, complying with GB 6245-2006 emergency startup requirements.
Q2: How does H-type right-angle gearbox ensure ≥95% transmission efficiency with stable operation?
Uses spiral bevel gears + forced oil circulation lubrication. Gear meshing precision reaches ISO 1328-1 Grade 6. Combined with bronze-base self-lubricating bearings, tested full-load efficiency ≥95%, vibration ≤4.5 mm/s.
Q3: How does surface-concentrated layout enable “maintenance without well entry”?
Motor + gearbox + pump base integrated at wellhead. After loosening pump base bolts, rotor assembly can be lifted 300–500 mm as a unit, fully exposing mechanical seals/bearings for maintenance without personnel entering the deep well.
Q4: How to protect transmission system with trace solid particles (≤0.1%)?
Standard bronze-base bearings + sand-resistant shaft sleeves. Optional tungsten carbide shaft sleeves + enclosed oil-lubricated gearbox. Tested: transmission efficiency decay ≤2%/year in 0.1% sand content, extending lifespan 3×.
Q5: What structural reinforcements are needed for ultra-deep wells (>200 m)?
Recommendations: ① Upgrade transmission shaft to 304 stainless steel + add guide bearings every 4–6 m; ② Increase column pipe wall thickness by 10%–15%; ③ Reinforce wellhead foundation + add anti-sway brackets. Provide well depth for custom evaluation.
