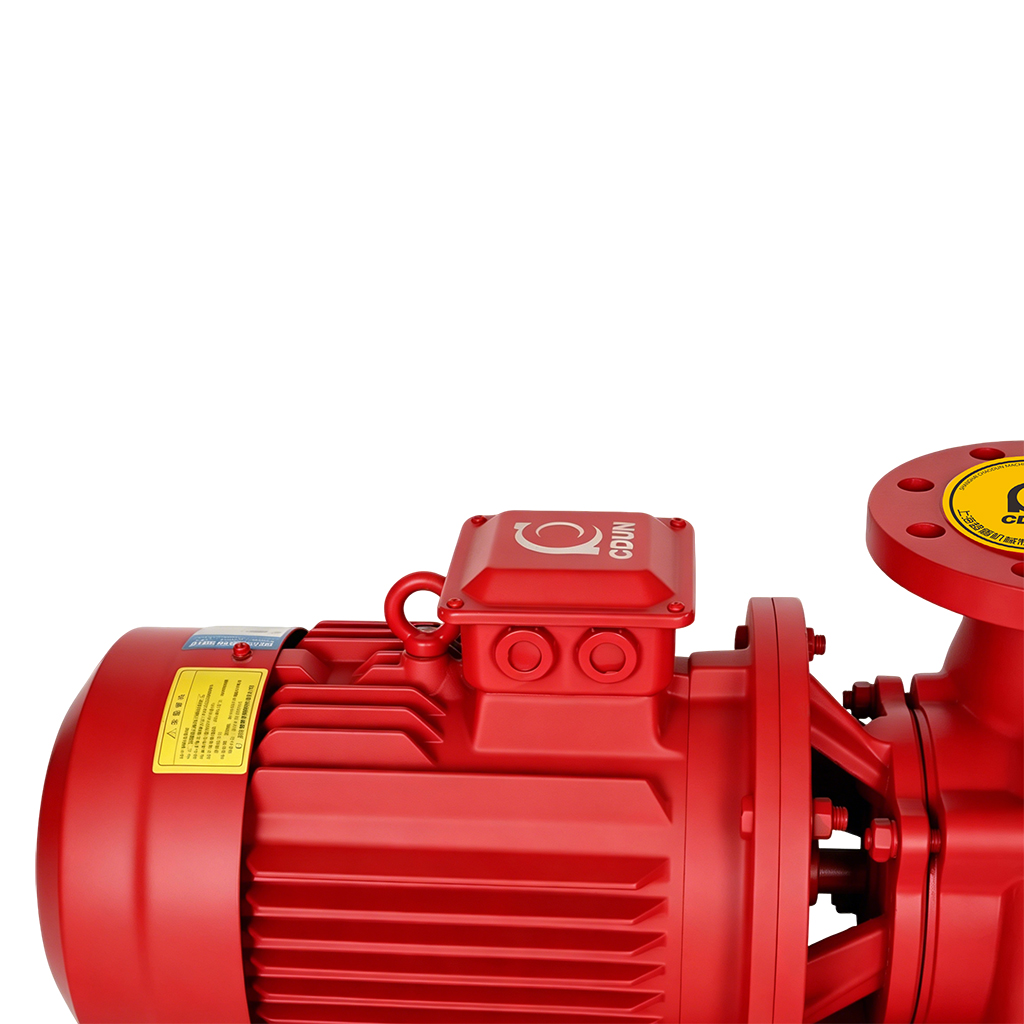

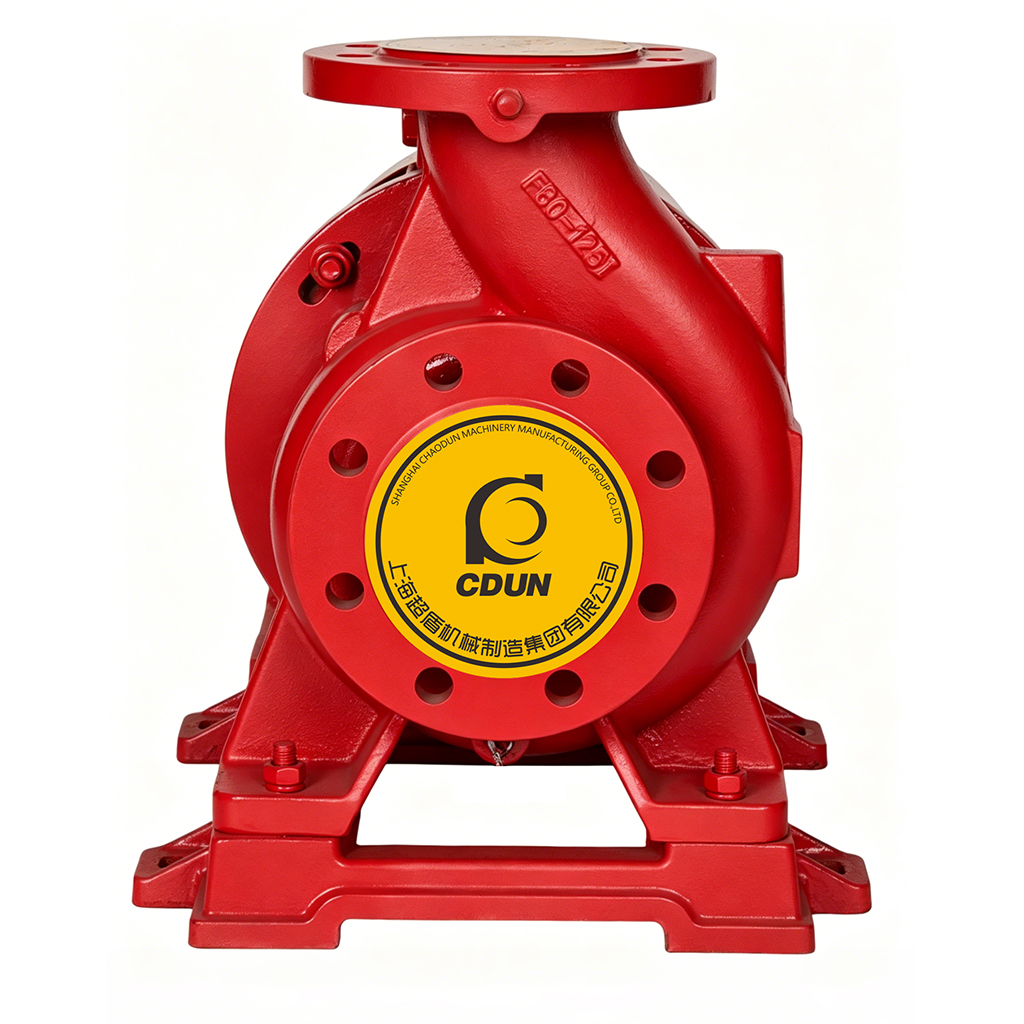

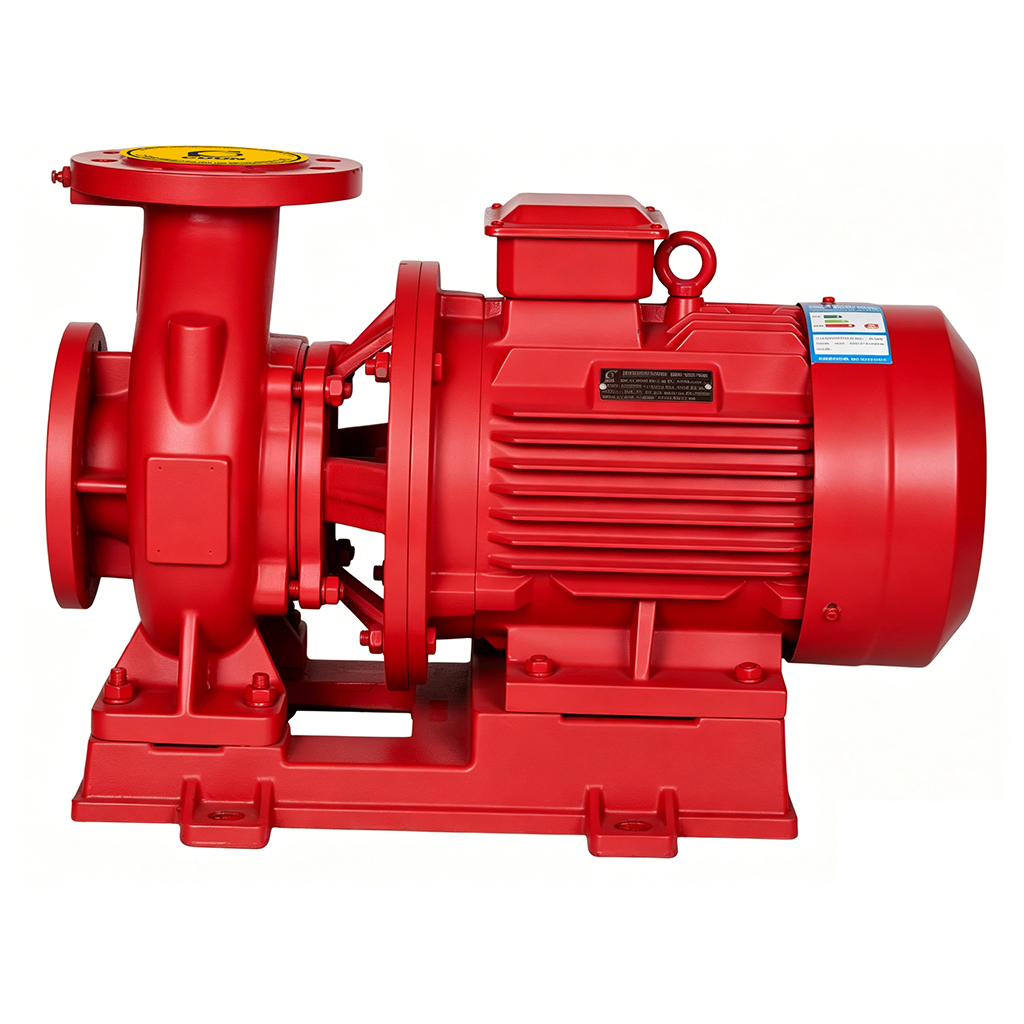

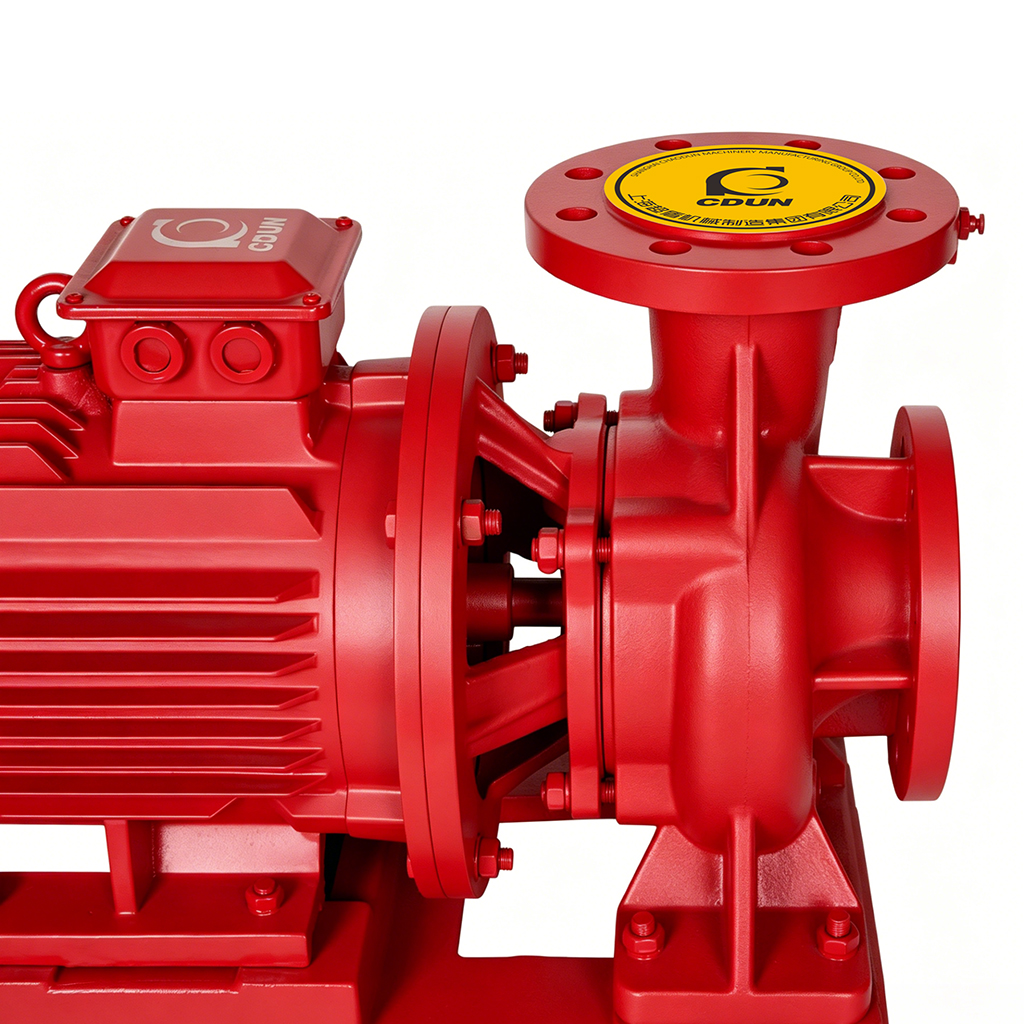

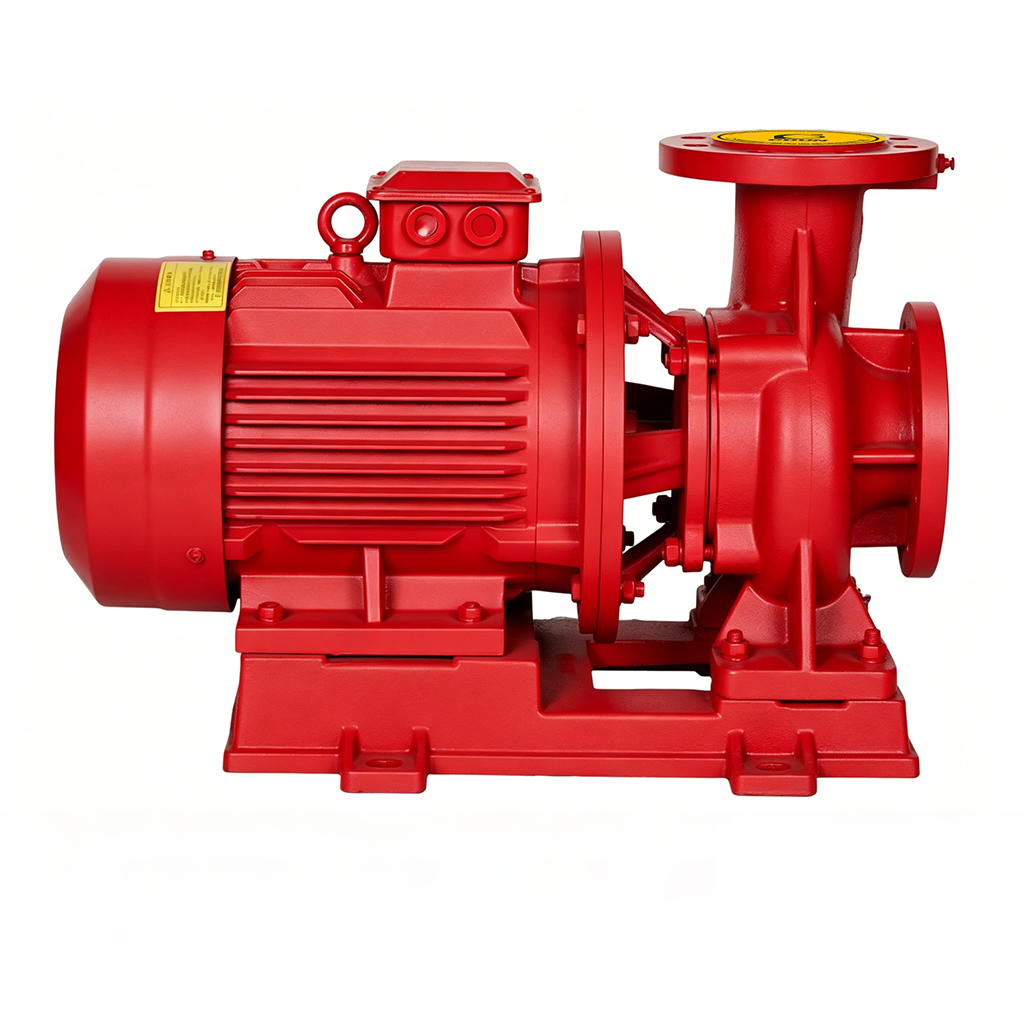

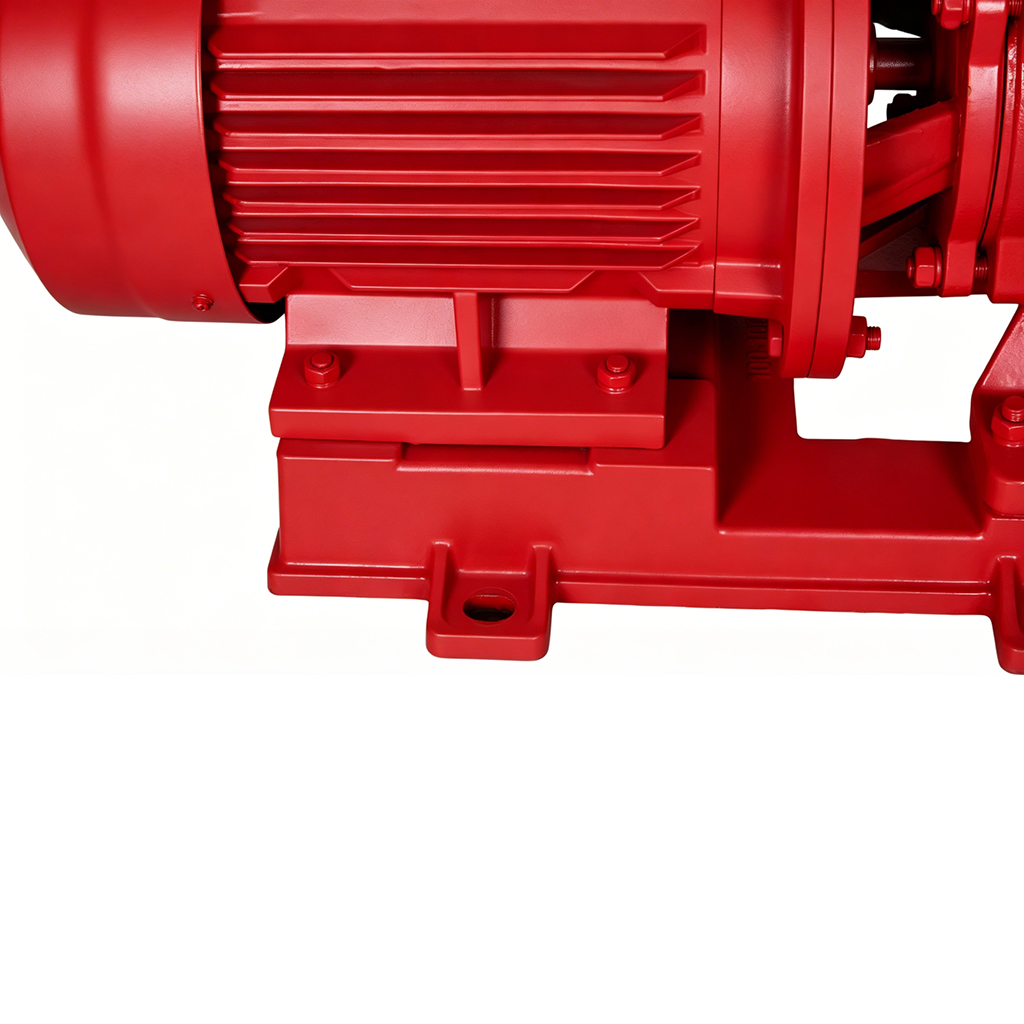

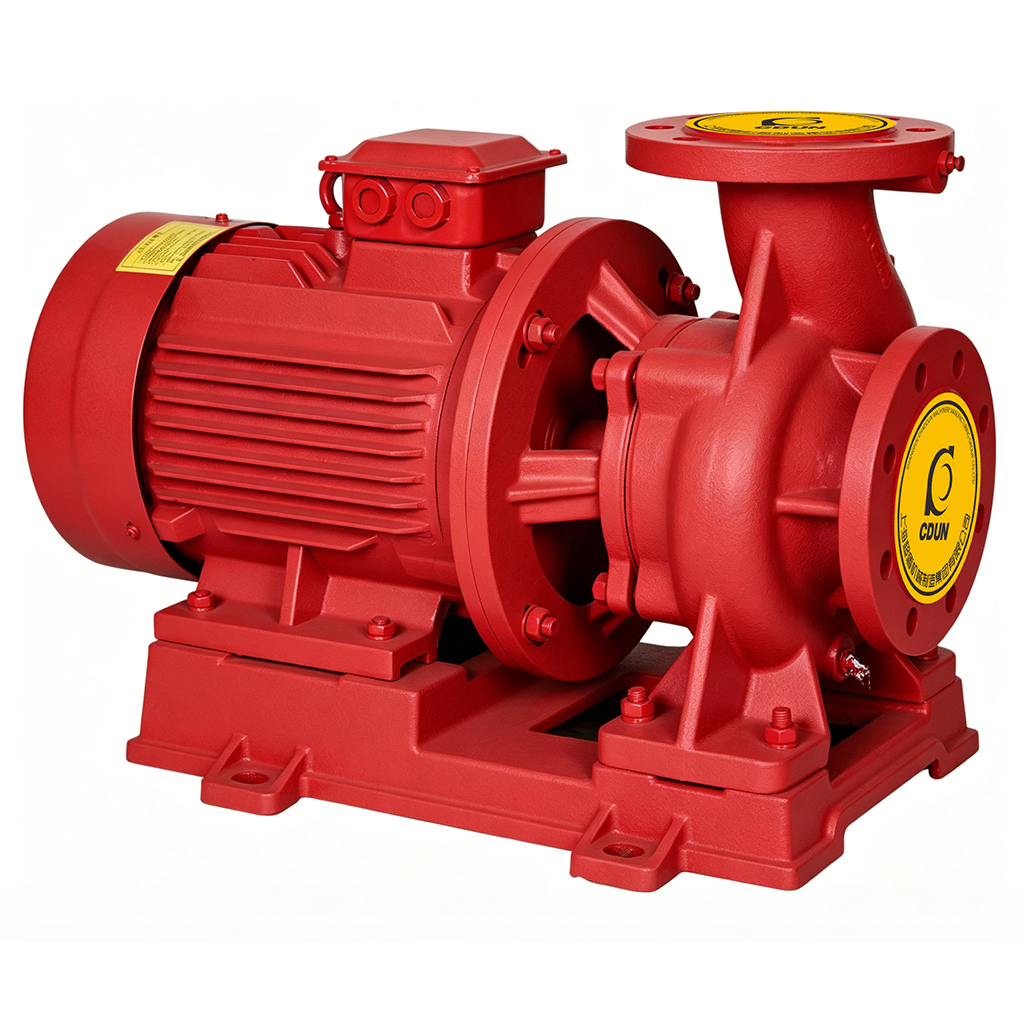

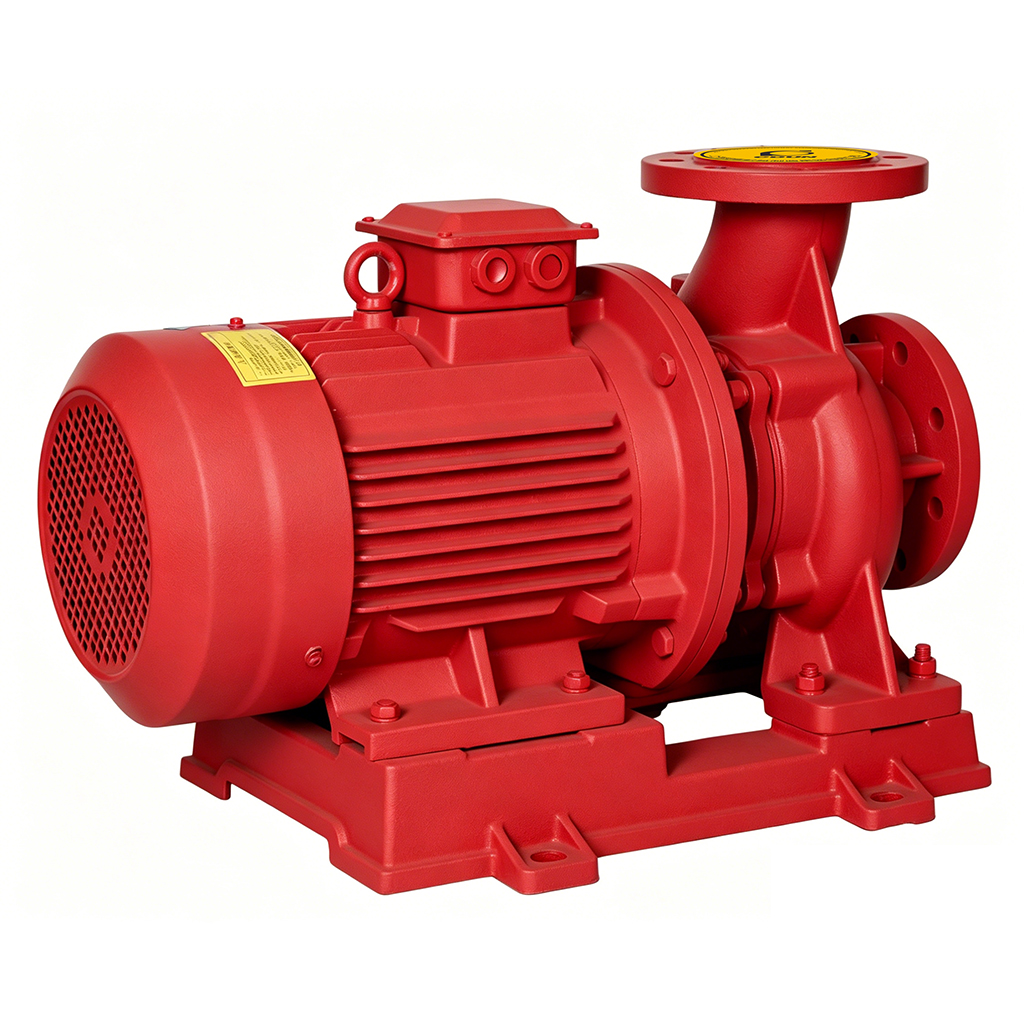

The Direct-Coupled Horizontal Fire Pump is a single-stage centrifugal fire pump with compact direct-coupled structure, hard alloy double-end mechanical seals, and back pull-out design, featuring optimized hydraulic model and ISO 1940 G6.3 balance for stable clean water transfer at -15℃ to +80℃.
Resolves critical challenges of conventional horizontal fire pumps: excessive footprint, vibration/noise exceedance, seal leakage, and maintenance requiring pipeline disassembly.
Suitable for building fire network boosting, high-rise zoned supply, HVAC circulation, and industrial systems requiring GB 6245-2006 compliance, no-pipeline-removal maintenance, and reliable standby start-up.
Extended Service Life: Standard tungsten carbide dual mechanical seals + 2Cr13 stainless steel shaft resist wear, corrosion & cavitation. Design lifespan ≥15 years—over 40% longer than standard cast-iron single-stage fire pumps.
Significant Energy Savings: Advanced hydraulic model + high-efficiency motor matching achieve ≥78% efficiency at rated duty. Combined with VFD regulation for fire conditions, comprehensive system energy consumption drops by 20%–25% vs. traditional solutions.
Lower Maintenance Costs: Back-pull-out structure + top vent/pressure ports enables rotor/seal inspection without disconnecting inlet/outlet piping. Single technician completes maintenance within 1 hour, reducing labor costs by 50%.
Lightweight & Compact Design: Horizontal motor-pump direct coupling eliminates coupling guard & heavy baseplate. Overall weight reduced by ~18% for equivalent flow/head ratings, lowering floor load & lifting complexity.
Faster Installation: Pre-aligned flanges + anchor bolt positioning holes enable zero-cutting pipe connection on-site. Standard units reach commissioning readiness within 1.5 hours from unboxing, compressing installation cycle by 45%.
Core Fire Protection Applications: Hydrant network boosting, automatic sprinkler pressure stabilization, water mist system high-pressure supply for buildings, ensuring stable pressure & rapid response during fire emergencies to meet mandatory fire acceptance requirements.
Extended Building Water Applications: Zone boosting for high-rise/super high-rise buildings, long-distance water conveyance projects, municipal drainage networks, solving high-zone pressure insufficiency & long-distance transmission loss pain points.
HVAC Circulation Applications: Heating boiler hot/cold water circulation, AC cooling water boosting, terminal network pressure stabilization, with stable low-noise operation ensuring efficient heat exchange for HVAC systems.
Flexible Industrial Integration: Industrial process water supply, equipment cooling integration, bathroom hot water circulation, with modular design facilitating system integration & automated control.
Media Compatibility: Clean water or similar non-corrosive liquids. Insoluble solids ≤0.1% (by mass). Media temperature: -15℃ to +80℃ (5℉ to 176℉).Application Scenarios
 | ||
| NO. | Component | Material |
| 1 | Electric Motor | Copper Winding |
| 2 | Shaft | Stainless Steel |
| 3 | Water Deflector | NBR |
| 4 | Pump Cover | Ductile Iron |
| 5 | Mechanical Seal | Silicon Carbide (SiC) |
| 6 | Air Vent Valve | Copper |
| 7 | Pump Casing | Ductile Iron |
| 8 | Impeller | Stainless Steel |
| NO. | Model & Specification | Rated Flow (L/s) | Rated Pressure(Mpa) | Rated Power (kw) | Rated Speed (r/min) | Max Working Pressure (≤MPa)
| Pressure at 150% Rated Flow (≥MPa)
|
| 1 | XBD3.2/5G-W | 5 | 0.32 | 4 | 2900 | 0.448 | 0.208 |
| 2 | XBD4.4/5G-W | 5 | 0.44 | 7.5 | 2900 | 0.616 | 0.286 |
| 3 | XBD5.0/5G-W | 5 | 0.50 | 7.5 | 2900 | 0.700 | 0.325 |
| 4 | XBD6.0/5G-W | 5 | 0.60 | 11 | 2900 | 0.840 | 0.390 |
| 5 | XBD7.0/5G-W | 5 | 0.70 | 11 | 2900 | 0.980 | 0.455 |
| 6 | XBD8.0/5G-W | 5 | 0.80 | 15 | 2900 | 1.120 | 0.520 |
| 7 | XBD9.0/5G-W | 5 | 0.90 | 18.5 | 2900 | 1.260 | 0.585 |
| 8 | XBD10.0/5G-W | 5 | 1.00 | 22 | 2900 | 1.400 | 0.650 |
| 9 | XBD11.0/5G-W | 5 | 1.10 | 30 | 2900 | 1.540 | 0.715 |
| 10 | XBD12.5/5G-W | 5 | 1.25 | 30 | 2900 | 1.750 | 0.813 |
| 11 | XBD3.2/10G-W | 10 | 0.32 | 4 | 2900 | 0.448 | 0.208 |
| 12 | XBD4.4/10G-W | 10 | 0.44 | 7.5 | 2900 | 0.616 | 0.286 |
| 13 | XBD5.0/10G-W | 10 | 0.50 | 7.5 | 2900 | 0.700 | 0.325 |
| 14 | XBD6.0/10G-W | 10 | 0.60 | 15 | 2900 | 0.840 | 0.390 |
| 15 | XBD7.0/10G-W | 10 | 0.70 | 18.5 | 2900 | 0.980 | 0.455 |
| 16 | XBD8.0/10G-W | 10 | 0.80 | 22 | 2900 | 1.120 | 0.520 |
| 17 | XBD9.0/10G-W | 10 | 0.90 | 22 | 2900 | 1.260 | 0.585 |
| 18 | XBD10.5/10G-W | 10 | 1.05 | 30 | 2900 | 1.470 | 0.683 |
| 19 | XBD11.5/10G-W | 10 | 1.15 | 30 | 2900 | 1.610 | 0.748 |
| 20 | XBD12.5/10G-W | 10 | 1.25 | 37 | 2900 | 1.750 | 0.813 |
| 21 | XBD3.2/15G-W | 15 | 0.32 | 7.5 | 2900 | 0.448 | 0.208 |
| 22 | XBD3.5/15G-W | 15 | 0.35 | 11 | 2900 | 0.490 | 0.228 |
| 23 | XBD4.4/15G-W | 15 | 0.44 | 11 | 2900 | 0.616 | 0.286 |
| 24 | XBD5.3/15G-W | 15 | 0.53 | 15 | 2900 | 0.742 | 0.345 |
| 25 | XBD6.0/15G-W | 15 | 0.60 | 15 | 2900 | 0.840 | 0.390 |
| NO. | Model & Specification | Rated Flow (L/s) | Rated Pressure(Mpa) | Rated Power (kw) | Rated Speed (r/min) | Max Working Pressure (≤MPa)
| Pressure at 150% Rated Flow (≥MPa)
|
| 26 | XBD7.0/15G-W | 15 | 0.70 | 18.5 | 2900 | 0.980 | 0.455 |
| 27 | XBD8.0/15G-W | 15 | 0.80 | 22 | 2900 | 1.120 | 0.520 |
| 28 | XBD9.0/15G-W | 15 | 0.90 | 22 | 2900 | 1.260 | 0.585 |
| 29 | XBD10.0/15G-W | 15 | 1.00 | 30 | 2900 | 1.400 | 0.650 |
| 30 | XBD11.0/15G-W | 15 | 1.10 | 30 | 2900 | 1.540 | 0.715 |
| 31 | XBD12.5/15G-W | 15 | 1.25 | 37 | 2900 | 1.750 | 0.813 |
| 32 | XBD13.5/15G-W | 15 | 1.35 | 37 | 2900 | 1.890 | 0.878 |
| 33 | XBD14.2/15G-W | 15 | 1.42 | 45 | 2900 | 1.988 | 0.923 |
| 34 | XBD15.0/15G-W | 15 | 1.50 | 55 | 2900 | 2.100 | 0.975 |
| 35 | XBD3.3/20G-W | 20 | 0.33 | 15 | 2900 | 0.462 | 0.215 |
| 36 | XBD3.8/20G-W | 20 | 0.38 | 15 | 2900 | 0.532 | 0.247 |
| 37 | XBD4.5/20G-W | 20 | 0.45 | 18.5 | 2900 | 0.630 | 0.293 |
| 38 | XBD5.5/20G-W | 20 | 0.55 | 22 | 2900 | 0.770 | 0.358 |
| 39 | XBD6.2/20G-W | 20 | 0.62 | 22 | 2900 | 0.868 | 0.403 |
| 40 | XBD7.2/20G-W | 20 | 0.72 | 30 | 2900 | 1.008 | 0.468 |
| 41 | XBD8.5/20G-W | 20 | 0.85 | 37 | 2900 | 1.190 | 0.553 |
| 42 | XBD9.5/20G-W | 20 | 0.95 | 37 | 2900 | 1.330 | 0.618 |
| 43 | XBD10.5/20G-W | 20 | 1.05 | 45 | 2900 | 1.470 | 0.683 |
| 44 | XBD11.5/20G-W | 20 | 1.15 | 55 | 2900 | 1.610 | 0.748 |
| 45 | XBD12.5/20G-W | 20 | 1.25 | 75 | 2900 | 1.750 | 0.813 |
| 46 | XBD13.5/20G-W | 20 | 1.35 | 75 | 2900 | 1.890 | 0.878 |
| 47 | XBD14.0/20G-W | 20 | 1.40 | 75 | 2900 | 1.960 | 0.910 |
| 48 | XBD15.5/20G-W | 20 | 1.55 | 90 | 2900 | 2.170 | 1.008 |
| 49 | XBD3.3/25G-W | 25 | 0.32 | 15 | 2900 | 0.448 | 0.208 |
| 50 | XBD3.8/25G-W | 25 | 0.38 | 15 | 2900 | 0.532 | 0.247 |
| 51 | XBD4.5/25G-W | 25 | 0.45 | 18.5 | 2900 | 0.630 | 0.293 |
| 52 | XBD5.2/25G-W | 25 | 0.52 | 22 | 2900 | 0.728 | 0.338 |
| 53 | XBD6.0/25G-W | 25 | 0.60 | 22 | 2900 | 0.840 | 0.390 |
| 54 | XBD7.2/25G-W | 25 | 0.72 | 30 | 2900 | 1.008 | 0.468 |
| 55 | XBD8.3/25G-W | 25 | 0.83 | 37 | 2900 | 1.162 | 0.540 |
| 56 | XBD9.0/25G-W | 25 | 0.90 | 37 | 2900 | 1.260 | 0.585 |
| 57 | XBD10.5/25G-W | 25 | 1.05 | 45 | 2900 | 1.470 | 0.683 |
| 58 | XBD11.5/25G-W | 25 | 1.15 | 55 | 2900 | 1.610 | 0.748 |
| 59 | XBD12.5/25G-W | 25 | 1.25 | 75 | 2900 | 1.750 | 0.813 |
| 60 | XBD13.5/25G-W | 25 | 1.35 | 75 | 2900 | 1.890 | 0.878 |
| 61 | XBD14.0/25G-W | 25 | 1.40 | 75 | 2900 | 1.960 | 0.910 |
| 62 | XBD16.0/25G-W | 25 | 1.60 | 110 | 2900 | 2.240 | 1.040 |
| 63 | XBD3.1/30G-W | 30 | 0.31 | 15 | 2900 | 0.434 | 0.202 |
| 64 | XBD3.2/30G-W | 30 | 0.32 | 18.5 | 2900 | 0.448 | 0.208 |
| 65 | XBD3.8/30G-W | 30 | 0.38 | 15 | 2900 | 0.532 | 0.247 |
| 66 | XBD4.5/30G-W | 30 | 0.45 | 18.5 | 2900 | 0.630 | 0.293 |
| NO. | Model & Specification | Rated Flow (L/s) | Rated Pressure(Mpa) | Rated Power (kw) | Rated Speed (r/min) | Max Working Pressure (≤MPa)
| Pressure at 150% Rated Flow (≥MPa)
|
| 67 | XBD4.9/30G-W | 30 | 0.49 | 22 | 2900 | 0.686 | 0.319 |
| 68 | XBD5.0/30G-W | 30 | 0.50 | 30 | 2900 | 0.700 | 0.325 |
| 69 | XBD6.0/30G-W | 30 | 0.60 | 30 | 2900 | 0.840 | 0.390 |
| 70 | XBD7.0/30G-W | 30 | 0.70 | 30 | 2900 | 0.980 | 0.455 |
| 71 | XBD8.0/30G-W | 30 | 0.80 | 37 | 2900 | 1.120 | 0.520 |
| 72 | XBD9.0/30G-W | 30 | 0.90 | 45 | 2900 | 1.260 | 0.585 |
| 73 | XBD10.0/30G-W | 30 | 1.00 | 45 | 2900 | 1.400 | 0.650 |
| 74 | XBD11.5/30G-W | 30 | 1.15 | 55 | 2900 | 1.610 | 0.748 |
| 75 | XBD12.5/30G-W | 30 | 1.25 | 75 | 2900 | 1.750 | 0.813 |
| 76 | XBD13.5/30G-W | 30 | 1.35 | 75 | 2900 | 1.890 | 0.878 |
| 77 | XBD14.2/30G-W | 30 | 1.42 | 75 | 2900 | 1.988 | 0.923 |
| 78 | XBD15/30G-W | 30 | 1.50 | 90 | 2900 | 2.100 | 0.975 |
| 79 | XBD3.2/35G-W | 35 | 0.32 | 22 | 2900 | 0.448 | 0.208 |
| 80 | XBD3.8/35G-W | 35 | 0.38 | 22 | 2900 | 0.532 | 0.247 |
| 81 | XBD4.4/35G-W | 35 | 0.44 | 30 | 2900 | 0.616 | 0.286 |
| 82 | XBD5.0/35G-W | 35 | 0.50 | 37 | 2900 | 0.700 | 0.325 |
| 83 | XBD6.0/35G-W | 35 | 0.60 | 37 | 2900 | 0.840 | 0.390 |
| 84 | XBD7.3/35G-W | 35 | 0.73 | 45 | 2900 | 1.022 | 0.475 |
| 85 | XBD8.2/35G-W | 35 | 0.82 | 55 | 2900 | 1.148 | 0.533 |
| 86 | XBD9.0/35G-W | 35 | 0.90 | 55 | 2900 | 1.260 | 0.585 |
| 87 | XBD10.0/35G-W | 35 | 1.00 | 75 | 2900 | 1.400 | 0.650 |
| 88 | XBD11.5/35G-W | 35 | 1.15 | 75 | 2900 | 1.610 | 0.748 |
| 89 | XBD12.5/35G-W | 35 | 1.25 | 75 | 2900 | 1.750 | 0.813 |
| 90 | XBD13.5/35G-W | 35 | 1.30 | 75 | 2900 | 1.820 | 0.845 |
| 91 | XBD14.2/35G-W | 35 | 1.42 | 90 | 2900 | 1.988 | 0.923 |
| 92 | XBD15.0/35G-W | 35 | 1.50 | 110 | 2900 | 2.100 | 0.975 |
| 93 | XBD3.2/40G-W | 40 | 0.32 | 22 | 2900 | 0.448 | 0.208 |
| 94 | XBD3.8/40G-W | 40 | 0.38 | 22 | 2900 | 0.532 | 0.247 |
| 95 | XBD4.4/40G-W | 40 | 0.44 | 30 | 2900 | 0.616 | 0.286 |
| 96 | XBD5.0/40G-W | 40 | 0.50 | 37 | 2900 | 0.700 | 0.325 |
| 97 | XBD6.0/40G-W | 40 | 0.60 | 37 | 2900 | 0.840 | 0.390 |
| 98 | XBD7.0/40G-W | 40 | 0.70 | 45 | 2900 | 0.980 | 0.455 |
| 99 | XBD8.0/40G-W | 40 | 0.80 | 55 | 2900 | 1.120 | 0.520 |
| 100 | XBD9.0/40G-W | 40 | 0.90 | 55 | 2900 | 1.260 | 0.585 |
| 101 | XBD10.0/40G-W | 40 | 1.00 | 75 | 2900 | 1.400 | 0.650 |
| 102 | XBD11.5/40G-W | 40 | 1.15 | 75 | 2900 | 1.610 | 0.748 |
| 103 | XBD12.5/40G-W | 40 | 1.25 | 75 | 2900 | 1.750 | 0.813 |
| 104 | XBD13.5/40G-W | 40 | 1.35 | 75 | 2900 | 1.890 | 0.878 |
| 105 | XBD14/40G-W | 40 | 1.40 | 90 | 2900 | 1.960 | 0.910 |
| 106 | XBD15/40G-W | 40 | 1.50 | 110 | 2900 | 2.100 | 0.975 |
| 107 | XBD3.2/45G-W | 45 | 0.32 | 22 | 2900 | 0.448 | 0.208 |
| NO. | Model & Specification | Rated Flow (L/s) | Rated Pressure(Mpa) | Rated Power (kw) | Rated Speed (r/min) | Max Working Pressure (≤MPa)
| Pressure at 150% Rated Flow (≥MPa)
|
| 108 | XBD3.6/45G-W | 45 | 0.36 | 22 | 2900 | 0.504 | 0.234 |
| 109 | XBD4.4/45G-W | 45 | 0.44 | 30 | 2900 | 0.616 | 0.286 |
| 110 | XBD5.0/45G-W | 45 | 0.50 | 37 | 2900 | 0.700 | 0.325 |
| 111 | XBD6.3/45G-W | 45 | 0.63 | 45 | 2900 | 0.882 | 0.410 |
| 112 | XBD7.0/45G-W | 45 | 0.70 | 45 | 2900 | 0.980 | 0.455 |
| 113 | XBD8.0/45G-W | 45 | 0.80 | 55 | 2900 | 1.120 | 0.520 |
| 114 | XBD9.0/45G-W | 45 | 0.90 | 55 | 2900 | 1.260 | 0.585 |
| 115 | XBD10.0/45G-W | 45 | 1.00 | 75 | 2900 | 1.400 | 0.650 |
| 116 | XBD11.0/45G-W | 45 | 1.10 | 75 | 2900 | 1.540 | 0.715 |
| 117 | XBD12.5/45G-W | 45 | 1.25 | 75 | 2900 | 1.750 | 0.813 |
| 118 | XBD13.5/45G-W | 45 | 1.35 | 75 | 2900 | 1.890 | 0.878 |
| 119 | XBD14.2/45G-W | 45 | 1.42 | 90 | 2900 | 1.988 | 0.923 |
| 120 | XBD15.0/45G-W | 45 | 1.50 | 110 | 2900 | 2.100 | 0.975 |
| 121 | XBD3.0/50G-W | 50 | 0.30 | 22 | 2900 | 0.420 | 0.195 |
| 122 | XBD4.0/50G-W | 50 | 0.40 | 30 | 2900 | 0.560 | 0.260 |
| 123 | XBD5.0/50G-W | 50 | 0.50 | 37 | 2900 | 0.700 | 0.325 |
| 124 | XBD6.0/50G-W | 50 | 0.60 | 45 | 2900 | 0.840 | 0.390 |
| 125 | XBD7.0/50G-W | 50 | 0.70 | 55 | 2900 | 0.980 | 0.455 |
| 126 | XBD8.2/50G-W | 50 | 0.82 | 75 | 2900 | 1.148 | 0.533 |
| 127 | XBD10.0/50G-W | 50 | 1.00 | 75 | 2900 | 1.400 | 0.650 |
| 128 | XBD11.0/50G-W | 50 | 1.10 | 90 | 2900 | 1.540 | 0.715 |
| 129 | XBD12.5/50G-W | 50 | 1.25 | 90 | 2900 | 1.750 | 0.813 |
| 130 | XBD13.5/50G-W | 50 | 1.35 | 90 | 2900 | 1.890 | 0.878 |
| 131 | XBD14.0/50G-W | 50 | 1.40 | 110 | 2900 | 1.960 | 0.910 |
| 132 | XBD15.0/50G-W | 50 | 1.50 | 110 | 2900 | 2.100 | 0.975 |
| 133 | XBD3.8/55G-W | 55 | 0.38 | 30 | 2900 | 0.532 | 0.247 |
| 134 | XBD4.5/55G-W | 55 | 0.45 | 37 | 2900 | 0.630 | 0.293 |
| 135 | XBD5.0/55G-W | 55 | 0.50 | 37 | 2900 | 0.700 | 0.325 |
| 136 | XBD6.0/55G-W | 55 | 0.60 | 45 | 2900 | 0.840 | 0.390 |
| 137 | XBD7.0/55G-W | 55 | 0.70 | 55 | 2900 | 0.980 | 0.455 |
| 138 | XBD8.0/55G-W | 55 | 0.80 | 75 | 2900 | 1.120 | 0.520 |
| 139 | XBD9.0/55G-W | 55 | 0.90 | 75 | 2900 | 1.260 | 0.585 |
| 140 | XBD11.0/55G-W | 55 | 1.10 | 90 | 2900 | 1.540 | 0.715 |
| 141 | XBD13.0/55G-W | 55 | 1.30 | 110 | 2900 | 1.820 | 0.845 |
| 142 | XBD14.0/55G-W | 55 | 1.40 | 110 | 2900 | 1.960 | 0.910 |
| 143 | XBD15.0/55G-W | 55 | 1.50 | 132 | 2900 | 2.100 | 0.975 |
| 144 | XBD3.8/60G-W | 60 | 0.38 | 30 | 2900 | 0.532 | 0.247 |
| 145 | XBD4.5/60G-W | 60 | 0.45 | 37 | 2900 | 0.630 | 0.293 |
| 146 | XBD5.0/60G-W | 60 | 0.50 | 37 | 2900 | 0.700 | 0.325 |
| 147 | XBD6.0/60G-W | 60 | 0.60 | 45 | 2900 | 0.840 | 0.390 |
| 148 | XBD7.0/60G-W | 60 | 0.70 | 55 | 2900 | 0.980 | 0.455 |
| NO. | Model & Specification | Rated Flow (L/s) | Rated Pressure(Mpa) | Rated Power (kw) | Rated Speed (r/min) | Max Working Pressure (≤MPa)
| Pressure at 150% Rated Flow (≥MPa)
|
| 149 | XBD8.0/60G-W | 60 | 0.80 | 75 | 2900 | 1.120 | 0.520 |
| 150 | XBD9.0/60G-W | 60 | 0.90 | 75 | 2900 | 1.260 | 0.585 |
| 151 | XBD10.0/60G-W | 60 | 1.00 | 90 | 2900 | 1.400 | 0.650 |
| 152 | XBD11.0/60G-W | 60 | 1.10 | 90 | 2900 | 1.540 | 0.715 |
| 153 | XBD12.5/60G-W | 60 | 1.25 | 110 | 2900 | 1.750 | 0.813 |
| 154 | XBD14.0/60G-W | 60 | 1.40 | 110 | 2900 | 1.960 | 0.910 |
| 155 | XBD15.0/60G-W | 60 | 1.50 | 132 | 2900 | 2.100 | 0.975 |
| 156 | XBD3.8/70G-W | 70 | 0.38 | 37 | 2900 | 0.532 | 0.247 |
| 157 | XBD4.4/70G-W | 70 | 0.44 | 45 | 2900 | 0.616 | 0.286 |
| 158 | XBD6.0/70G-W | 70 | 0.60 | 55 | 2900 | 0.840 | 0.390 |
| 159 | XBD7.0/70G-W | 70 | 0.70 | 75 | 2900 | 0.980 | 0.455 |
| 160 | XBD8.0/70G-W | 70 | 0.80 | 75 | 2900 | 1.120 | 0.520 |
| 161 | XBD10.0/70G-W | 70 | 1.00 | 90 | 2900 | 1.400 | 0.650 |
| 162 | XBD11.0/70G-W | 70 | 1.10 | 110 | 2900 | 1.540 | 0.715 |
| 163 | XBD12.0/70G-W | 70 | 1.20 | 110 | 2900 | 1.680 | 0.780 |
| 164 | XBD13.0/70G-W | 70 | 1.30 | 132 | 2900 | 1.820 | 0.845 |
| 165 | XBD15.0/70G-W | 70 | 1.50 | 160 | 2900 | 2.100 | 0.975 |
| 166 | XBD4.0/80G-W | 80 | 0.40 | 55 | 2900 | 0.560 | 0.260 |
| 167 | XBD5.0/80G-W | 80 | 0.50 | 75 | 2900 | 0.700 | 0.325 |
| 168 | XBD6.0/80G-W | 80 | 0.60 | 90 | 2900 | 0.840 | 0.390 |
| 169 | XBD7.0/80G-W | 80 | 0.70 | 90 | 2900 | 0.980 | 0.455 |
| 170 | XBD8.0/80G-W | 80 | 0.80 | 110 | 2900 | 1.120 | 0.520 |
| 171 | XBD9.0/80G-W | 80 | 0.90 | 110 | 2900 | 1.260 | 0.585 |
| 172 | XBD11.0/80G-W | 80 | 1.10 | 132 | 2900 | 1.540 | 0.715 |
| 173 | XBD13.0/80G-W | 80 | 1.30 | 160 | 2900 | 1.820 | 0.845 |
| 174 | XBD14.0/80G-W | 80 | 1.40 | 200 | 2900 | 1.960 | 0.910 |
| 175 | XBD4.0/90G-W | 90 | 0.40 | 55 | 2900 | 0.560 | 0.260 |
| 176 | XBD5.0/90G-W | 90 | 0.50 | 75 | 2900 | 0.700 | 0.325 |
| 177 | XBD7.0/90G-W | 90 | 0.70 | 90 | 2900 | 0.980 | 0.455 |
| 178 | XBD9.0/90G-W | 90 | 0.90 | 110 | 2900 | 1.260 | 0.585 |
| 179 | XBD11.0/90G-W | 90 | 1.10 | 132 | 2900 | 1.540 | 0.715 |
| 180 | XBD12.0/90G-W | 90 | 1.20 | 200 | 2900 | 1.680 | 0.780 |
| 181 | XBD13.0/90G-W | 90 | 1.30 | 200 | 2900 | 1.820 | 0.845 |
| 182 | XBD3.0/100G-W | 100 | 0.30 | 55 | 2900 | 0.420 | 0.195 |
| 183 | XBD4.0/100G-W | 100 | 0.40 | 75 | 2900 | 0.560 | 0.260 |
| 184 | XBD5.0/100G-W | 100 | 0.50 | 90 | 2900 | 0.700 | 0.325 |
| 185 | XBD6.0/100G-W | 100 | 0.60 | 110 | 2900 | 0.840 | 0.390 |
| 186 | XBD7.0/100G-W | 100 | 0.70 | 132 | 2900 | 0.980 | 0.455 |
| 187 | XBD8.0/100G-W | 100 | 0.80 | 160 | 2900 | 1.120 | 0.520 |
| 188 | XBD10.0/100G-W | 100 | 1.00 | 200 | 2900 | 1.400 | 0.650 |
| 189 | XBD3.0/110G-W | 110 | 0.30 | 55 | 2900 | 0.420 | 0.195 |
| NO. | Model & Specification | Rated Flow (L/s) | Rated Pressure(Mpa) | Rated Power (kw) | Rated Speed (r/min) | Max Working Pressure (≤MPa)
| Pressure at 150% Rated Flow (≥MPa)
|
| 190 | XBD4.0/110G-W | 110 | 0.40 | 75 | 2900 | 0.560 | 0.260 |
| 191 | XBD5.0/110G-W | 110 | 0.50 | 90 | 2900 | 0.700 | 0.325 |
| 192 | XBD6.0/110G-W | 110 | 0.60 | 110 | 2900 | 0.840 | 0.390 |
| 193 | XBD7.0/110G-W | 110 | 0.70 | 132 | 2900 | 0.980 | 0.455 |
| 194 | XBD8.0/110G-W | 110 | 0.80 | 160 | 2900 | 1.120 | 0.520 |
| 195 | XBD10.0/110G-W | 110 | 1.00 | 200 | 2900 | 1.400 | 0.650 |
| 196 | XBD4.0/120G-W | 120 | 0.40 | 90 | 2900 | 0.560 | 0.260 |
| 197 | XBD4.5/120G-W | 120 | 0.45 | 110 | 2900 | 0.630 | 0.293 |
| 198 | XBD5.0/120G-W | 120 | 0.50 | 132 | 2900 | 0.700 | 0.325 |
| 199 | XBD6.5/120G-W | 120 | 0.65 | 160 | 2900 | 0.910 | 0.423 |
| 200 | XBD6.7/120G-W | 120 | 0.67 | 200 | 2900 | 0.938 | 0.436 |
Media：
Type: Clean water / similar non-corrosive liquids
Solids: Insolubles ≤0.1% (by mass)
Temperature：
Media: -15°C～+80°C
Ambient: ≤40°C
Humidity：
Relative humidity: ≤95% (non-condensing)
Note: High temp/corrosion/particles/explosion-proof? Consult before selection. Custom solutions available.
Mandatory Fire Certification: Strictly manufactured per GB 6245-2006 “Performance Requirements and Test Methods for Fire Pumps”. Passed full type testing by National Fire Equipment Quality Supervision & Inspection Center, certified with CCCF fire product certification (verifiable certificate number).
Performance Compliance Assurance: Flow-head curve, NPSHr, vibration/noise (≤75 dB(A)), & pressure strength 100% compliant. Bilingual third-party test reports available.
International Quality System: ISO 9001:2015 certified. Core pressure-bearing components evaluated per CE/PED 2014/68/EU, meeting EU/US market entry requirements.
Factory Inspection Standard: Every unit undergoes 1.5× rated pressure hydrostatic test (5-min hold) + ISO 1940 G6.3 dynamic balance calibration + mechanical seal leakage test (<0.01 mL/h), guaranteeing zero-leakage, zero-fault delivery.
Fast Standard Delivery: Covers flow 5–500 m³/h, head 20–150 m. Standard cast iron/304 stainless steel wetted parts + IP55 motors. Technical confirmation & sample prototyping within 72 hours.
Deep Customization Capabilities:
Material Upgrade: Wetted parts optional in 316L/2Cr13 stainless steel or duplex steel for mildly corrosive, high-chloride, or high-reliability fire water.
Seals & Motors: Optional high-temp mechanical seals (up to 105℃), explosion-proof motors (Ex d IIB T4), IE4 ultra-efficiency or VFD-dedicated drives.
Structural Adaptation: Flange standard switching (GB/ANSI/DIN/JIS), reinforced base, pre-installed flexible joints, outdoor rain/soundproof canopy customization.
Intelligent Expansion: Pre-wired interfaces for pressure/flow/vibration sensors; supports integration with auto fire control cabinets, PLC primary/standby rotation modules, IoT cloud platforms.
Please contact us for customization inquiries. Our engineering team delivers process proposals within 48 hours.
Installation Key Points:
1.Mount pump horizontally on solid concrete foundation. Tighten anchor bolts symmetrically. Ensure shaft horizontal deviation ≤0.05 mm/m to prevent premature bearing wear from uneven loading.
2.Connect inlet/outlet with flexible rubber joints. Never transmit pipe stress to pump body. Provide independent supports for inlet/outlet piping.
3.Motor junction box faces outward. Secure cable along pipe wall. Grounding resistance ≤4 Ω. Manually rotate shaft 3 turns to confirm smooth, friction-free rotation.
4.Open top vent valve to fill pump with media. Lock valve after confirming no air remains. Jog test to verify rotation (clockwise from motor end).
Commissioning Process: Prime & vent → Jog test for direction → No-load run 5 min → Slowly open discharge valve to rated duty → Record current/pressure/vibration/bearing temp data → Acceptance sign-off.
Request the “Horizontal Single-Stage Fire Pump Set Installation & Maintenance Manual” (PDF/English version) for complete dimensional drawings, flange specs, and commissioning logs.
Q1: How does back-pull-out design enable “maintenance without disconnecting pipes”?
After loosening rear cover bolts, motor + bracket + rotor assembly can be pulled out rearward as a unit. Core components (seals/bearings/impellers) are fully exposed for maintenance without disturbing inlet/outlet pipes.
Q2: How do tungsten carbide dual mechanical seals achieve leakage rate <0.01 mL/h?
Two seals in series (inner main + outer auxiliary) + oil-chamber lubrication/cooling. Tungsten carbide mating faces precision ≤0.001 mm. Tested leakage rate <0.01 mL/h, meeting clean workshop requirements.
Q3: How does ISO 1940 G6.3 dynamic balance ensure vibration <4.5 mm/s?
Impeller undergoes high-precision dynamic balance calibration, residual unbalance ≤4.5 g·mm/kg. Combined with short-span rigid shaft & heavy-duty self-aligning bearings, tested vibration <4.5 mm/s across all duties.
Q4: How to guarantee rapid response & stable pressure during fire emergencies?
Features low-inertia impeller + direct line-frequency start design, reaching rated RPM within 2 seconds upon fire alarm trigger. Combined with outlet slow-closing check valve, maintaining pipeline pressure fluctuation within ±0.05 MPa.
Q5: What customizations are needed for high-temperature media (>80℃)?
Standard type suits -15℃ to +80℃. For >80℃: ① High-temp mechanical seals (FKM O-rings + SiC mating faces); ② Pump body insulation jacket; ③ Enhanced motor cooling. Specify temperature parameters when ordering.
