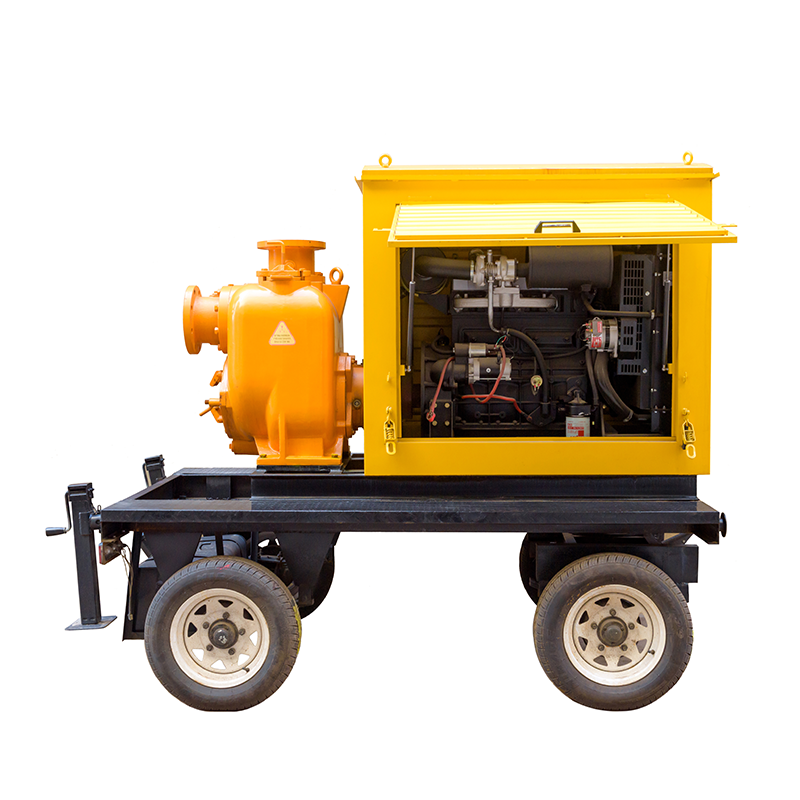

The Diesel-Engine Driven Self-Priming Drainage Pump Set is a mobile emergency drainage unit with diesel direct drive, high-mobility trailer chassis, and self-priming pump, featuring one-touch control and large-passage anti-clogging impeller for 20-8500 m³/h flow and 8-80 m head operation.
Resolves critical challenges of conventional emergency drainage: grid-dependent delayed start-up, cumbersome relocation, clogging by large particles/long fibers, and difficult off-grid maintenance.
Suitable for urban flood response, municipal repair, construction dewatering, agricultural irrigation, and industrial off-grid backup requiring 30-minute deployment, 5-minute self-priming, 24-hour continuous operation, and transfer of solids ≤80% pump outlet diameter or fibers ≤300mm.
Extended Service Life: Heavy-duty diesel engine + wear-resistant self-priming pump body + heavy trailer chassis resist impact & fatigue. Design lifespan ≥10 years—over 30% longer than standard mobile electric pumps.
Significant Energy Savings: Diesel direct drive eliminates power conversion losses. Combined with high-efficiency self-priming hydraulic model, rated fuel consumption ≤220 g/kW·h, reducing comprehensive energy consumption by 15%–20% vs. “generator + electric pump” emergency solutions.
Lower Maintenance Costs: Modular quick-install design + top inspection ports enable routine maintenance without special tools. One technician completes filter/seal/belt replacement within 1 hour, reducing labor costs by 45%.
Lightweight & Compact Design: High-strength steel trailer + integrated layout reduces overall weight by ~15% for equivalent flow ratings, lowering towing vehicle requirements & relocation transport costs.
Faster Installation: Pre-installed coupling interfaces + adjustable support legs + quick-connect piping enable positioning → pipe connection → startup within 30 minutes, compressing deployment cycle by 60%.
Emergency: Flood/typhoon | Trailer, no power | 5-min self-prime, 24h drainage
Municipal: Road pooling/sewer dredging/backup | Solids/fibers OK | Flexible relocation
Construction: Pit dewatering/temp supply | Off-grid | Fixed/mobile mode Agriculture: Drought relief/orchard/aquaculture | Remote mobile | Clean water/trace solids
Industrial: Mining/fire/process emergency | Off-grid | Solids ≤80% outlet, fibers ≤300mm Media: Solids ≤80% outlet | Fibers ≤300mm | Temp ≤60°C (≤140°F)
Product Structure Diagram
Media: Liquids with large solids/long fibers | Particles ≤80% outlet diameter, fibers ≤300mm | Media temp ≤60°C (≤140°F) Performance: Flow 20–8500 m³/h (317–134,800 GPM) | Head 8–80 m (26–262 ft) | Diesel speed 1500/1800/2200/3000 rpm Environment: Ambient ≤40°C (≤104°F) | Altitude ≤1000m (≤3280 ft, customizable if exceeded) | Humidity ≤95% non-condensing Installation: Trailer-mounted/fixed-leg dual mode | Self-priming ≤5 min Note: Special conditions (high temp/corrosion/high sand/extreme cold/ultra-deep suction)? Consult before selection. Custom solutions available.
National Standard Compliance: Strictly manufactured per relevant clauses of GB/T 2816-2014 & JB/T 5118-2010. Hydraulic performance & mechanical safety 100% compliant. Third-party full performance curve test reports available.
Diesel Emission Certification: Equipped with premium domestic/imported diesel engines, compliant with GB 20891-2014 non-road mobile machinery emission standards (Stage IIIA/IIIB optional), meeting environmental access requirements.
Trailer Safety Certification: Trailer chassis certified per GB 7258-2017 “Safety specifications for power-driven vehicles operating on roads”, equipped with braking system, lighting signals, towing connectors, complying with road driving regulations.
Factory Inspection Standard: Every unit undergoes 1.5× rated pressure hydrostatic test (5-min hold) + self-priming performance test (≤5 min priming) + 24-hour load running verification + large-particle passage test, guaranteeing zero-fault delivery.
Fast Standard Delivery: Covers flow 20–8500 m³/h, head 8–80 m. Standard domestic premium diesel + self-priming pump + steel trailer. Technical confirmation within 72 hours.
Deep Customization Capabilities:
Pump Configuration: Flexible selection of self-priming/submersible/double-suction pumps for precise matching of particulate/fiber/clean water media.
Diesel Upgrade: Optional Cummins/Volvo/Perkins imported brands for explosion-proof, low-noise, high-altitude, or extreme cold conditions.
Trailer Customization: Supports single/dual-axle/four-wheel steering chassis; optional hydraulic legs, night-work lighting, rain-proof canopy, remote control modules.
Intelligent Expansion: Pre-wired interfaces for level/pressure/RPM sensors; supports IoT remote monitoring, auto start/stop, fault alarm, multi-unit parallel modules.
Please contact us for customization inquiries. Our engineering team delivers process proposals within 48 hours.
Installation Guidelines
1.Park trailer on solid, level ground. Deploy hydraulic legs & level unit. Ensure pump shaft horizontal deviation ≤2 mm/m to prevent vibration transmission.
2.Connect inlet/outlet with large-diameter flexible hoses. Rigid pipe direct connection is prohibited. Recommend installing foot valve + filter at inlet to prevent large-particle clogging.
3.Equip diesel exhaust system with silencer + rain cap. Route exhaust outlet to safe area to prevent fume recirculation.
4.Before initial startup, check engine oil/coolant/fuel levels. Manually rotate shaft to confirm smooth operation. Open vent valve to prime pump, then close.
Commissioning Process: Vent fuel system → Manual shaft rotation → Jog test for direction → One-key start for self-priming (≤5 min) → Slowly open discharge valve to rated duty → Record RPM/pressure/vibration/exhaust data → Acceptance.
Request the “TBC Trailer-Mounted Diesel Pump Set Installation & Maintenance Manual” (PDF/English version) for complete dimensional drawings, piping diagrams, and commissioning logs.
Q1: How does the self-priming pump achieve ≤5-minute rapid priming?
Features gas-liquid mixing self-priming structure + optimized pump chamber volume. After initial priming, diesel start creates vacuum within 30 seconds. Tested: ≤5 minutes to complete priming & reach rated duty.
Q2: How does the trailer chassis adapt to complex off-road conditions?
High ground clearance (≥300 mm) + heavy leaf spring suspension + off-road tires, combined with adjustable legs & towing frame, ensuring stable parking & relocation on muddy/gravel/slope terrain.
Q3: How to prevent pump clogging with large particles/long fibers?
Self-priming pump features large-passage impeller + non-clogging volute design. Minimum flow area ≥80% of outlet diameter. With inlet filter, tested Φ100mm solids/300mm fibers pass smoothly.
Q4: How to ensure diesel reliability during 24-hour continuous operation?
Standard large-capacity fuel tank (≥8-hour range) + forced water-cooling system + three-stage protection (oil/air/fuel filters). Supports refueling & filter replacement without shutdown, ensuring 24h continuous operation.
Q5: What preparations are needed for startup in extreme cold (<-15℃)?
Standard water-jacket preheating + low-temp battery guarantees startup within 3 attempts at -15℃. For <-20℃, add fuel heater + intake preheating module, and use -35# low-temperature diesel.
