Product Overview

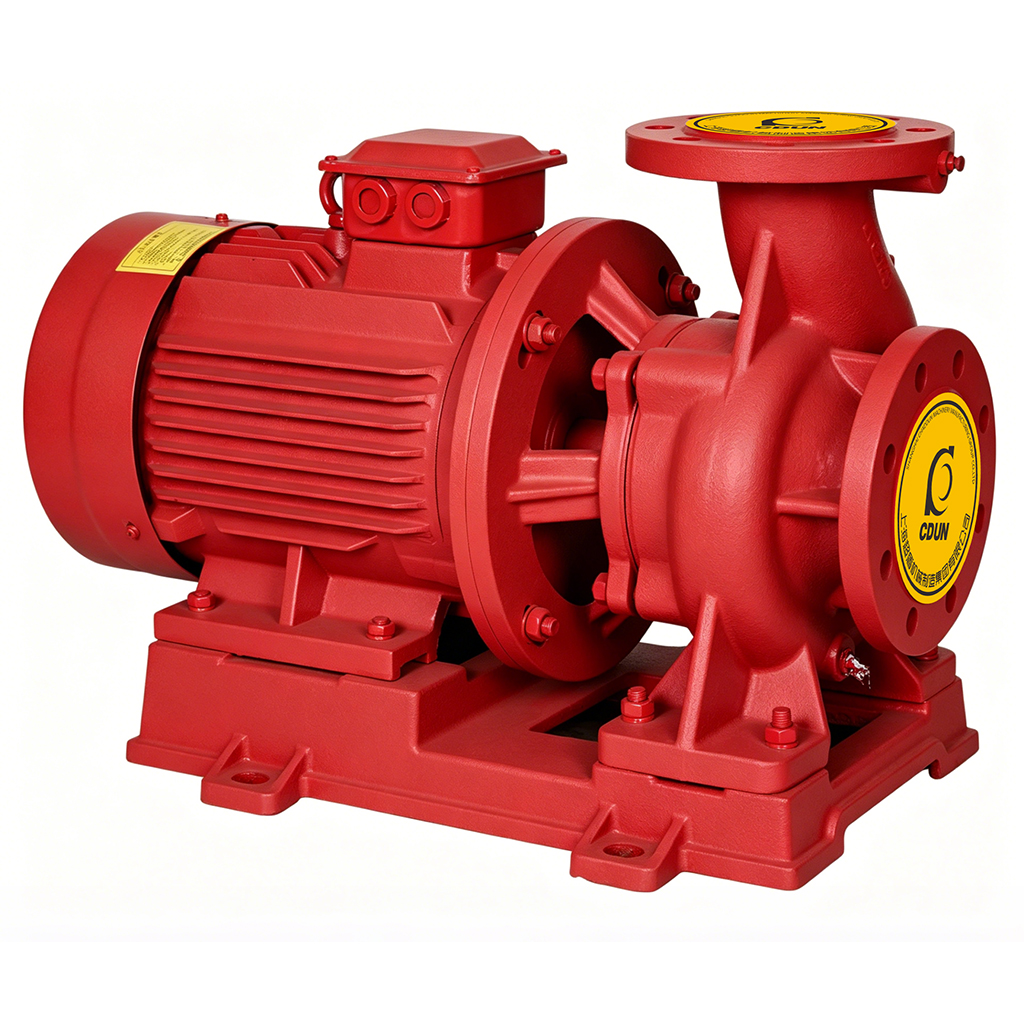

The XBD-W Horizontal Single-Stage Fire Pump is a centrifugal pump designed for fire water supply systems. With a reliable hydraulic design and stable operation, it provides continuous and dependable water supply during fire emergencies.
It is widely used in fire hydrant systems, sprinkler systems, and building, industrial, and public fire protection projects.
Product Advantages
1.Stable and Reliable Operation
Optimized hydraulic design ensures smooth operation and continuous water supply for fire protection systems.
2.High Efficiency and Energy Saving
The optimized pump structure and impeller design improve efficiency and reduce long-term operating energy consumption.
3.Easy Maintenance
The horizontal structure provides a clear layout, making component inspection and maintenance easier while reducing downtime.
4.Wide Application Range
Flow, head, and motor configurations can be customized according to different fire protection system requirements for various engineering applications.
5.Durable Construction
Reliable manufacturing processes and high-quality materials ensure long service life, suitable for long-term standby and continuous operation.
Technical Parameters
Flow Range:1–120 L/s
Pressure Range:32–1.52 MPa
Power Range:75–200 kW
Speed:2900 r/min
Diameter Range:DN32–DN250
Drive System:Electric motor driven
Pump Type:Horizontal single-stage centrifugal fire pump
Applicable Media:Clean water and fire protection water
Note: The specific model should be selected according to fire protection system requirements, flow rate, pressure, voltage, frequency, and project standards.
Applications
Commercial Building Fire Protection Systems
Suitable for fire water supply systems in shopping malls, hotels, office buildings, residential buildings, and other commercial facilities.
Industrial Fire Protection Projects
Used for fire protection in factories, warehouses, energy facilities, and industrial production areas.
Public Facility Projects
Suitable for fire protection systems in schools, hospitals, airports, railway stations, and large public buildings.
High-Rise Building Fire Protection
Provides stable pressure and reliable water supply for high-rise building fire protection systems.
Municipal and Engineering Projects
Applicable for various fire water supply systems and large-scale fire protection projects.
Compliance & Certifications
Strict Quality Control
Full-process quality control from material inspection and manufacturing to final testing ensures reliable performance.
Fire Protection Reliability
Designed according to fire water supply requirements with tested key components for continuous emergency operation.
Component Quality Assurance
Pump body, impeller, shaft, motor, and sealing components are strictly inspected and available with customized configurations.
Factory Performance Testing
Each fire pump undergoes pressure, performance, and operation tests before delivery to ensure quality and reliability.
OEM
Configuration Customization:
Customize flow rate, head, motor power, and pump unit configuration according to project requirements.
Electrical Solution Customization:
Support customized voltage, frequency, motor brands, and control methods.
Structural Customization:
Provide customized installation methods, flange standards, and equipment dimensions.
Material Customization:
Select suitable pump body, impeller, shaft, and sealing materials according to operating conditions.
Installation Instructions
1.Installation Inspection
Confirm that the pump model, flow rate, head, and electrical parameters meet the design requirements, and check that the equipment is in good condition.
2.Foundation Installation
Install the pump unit on a flat and solid foundation to ensure stable operation.
3.Pipeline Connection
Connect the fire protection pipelines according to the inlet and outlet directions. The pipeline weight should not be directly applied to the pump body.
4.Electrical Connection
Electrical wiring of the motor should be completed by qualified personnel, and all protection functions should be checked for proper operation.
5.Commissioning and Operation
Before startup, check the pump body, valves, and system conditions to confirm the correct rotation direction and normal operating status.
Frequently Asked Questions
The XBD-W Fire Pump is mainly used in fire hydrant systems, automatic sprinkler systems, and fire water supply systems for buildings and industrial facilities.
Selection requires the required flow rate, head, voltage, frequency, operating environment, and applicable fire protection standards to determine the proper model and configuration.
Yes. The series features a reliable structural design and is suitable for long-term standby service and emergency operation in fire protection systems.
Yes. It can be equipped with a fire pump control cabinet to provide automatic start-up, operation monitoring, and protection functions.
Yes. Flow, pressure, motor configuration, materials, installation methods, and control solutions can be customized according to project requirements.
We can provide product specifications, performance curves, dimensional drawings, CAD drawings, technical data sheets, and related project documents.
